IAUC24N10S5L300ATMA1
ActiveInfineon Technologies
MOSFET, N-CH, 100V, 24A, TDSON ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
IAUC24N10S5L300ATMA1
ActiveInfineon Technologies
MOSFET, N-CH, 100V, 24A, TDSON ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IAUC24N10S5L300ATMA1 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 24 A |
| Drain to Source Voltage (Vdss) | 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 11 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 670 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |

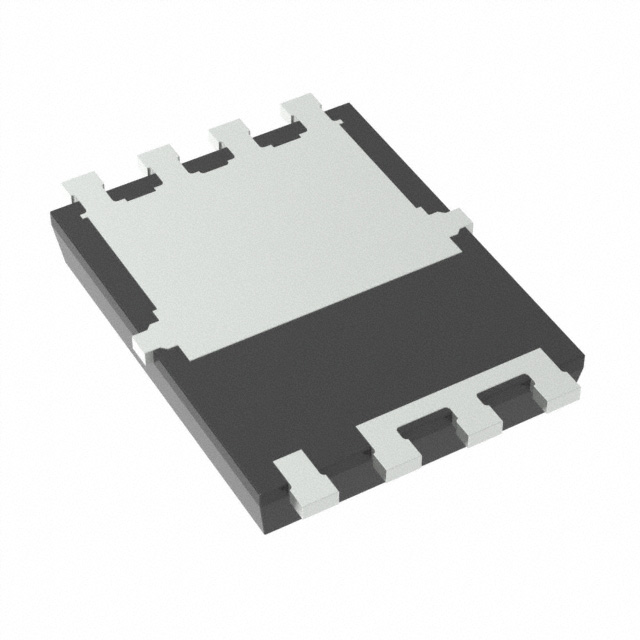

| Package / Case | 8-PowerTDFN |
| Power Dissipation (Max) | 38 W |
| Rds On (Max) @ Id, Vgs | 30 mOhm |
| Supplier Device Package | PG-TDSON-8-33 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.96 | |
| 10 | $ 0.78 | |||
| 100 | $ 0.61 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.42 | |||
| 2000 | $ 0.40 | |||
| Digi-Reel® | 1 | $ 0.96 | ||
| 10 | $ 0.78 | |||
| 100 | $ 0.61 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.42 | |||
| 2000 | $ 0.40 | |||
| Tape & Reel (TR) | 5000 | $ 0.38 | ||
| 10000 | $ 0.36 | |||
| 25000 | $ 0.36 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.25 | |
| 10 | $ 0.81 | |||
| 25 | $ 0.73 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.38 | |||
Description
General part information
IAUC24 Series
N-Channel 100 V 24A (Tc) 38W (Tc) Surface Mount PG-TDSON-8-33
