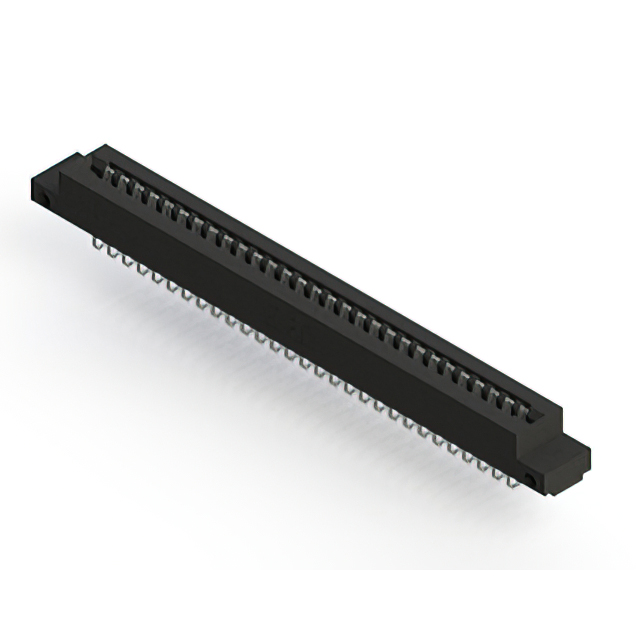

857-029-459-112

Active

EDAC Inc.

CONN EDGE SGL FML 29POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-029-459-112

Active

EDAC Inc.

CONN EDGE SGL FML 29POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-029-459-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	29
Number of Positions/Bay/Row	29
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

857-029 Series

Part	Mounting Type	Color	Card Type	Read Out	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Finish	Pitch [x]	Pitch [x]	Material - Insulation	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Number of Rows	Contact Type	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Flange Feature	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 857-029-501-101	Through Hole	Black	Non Specified - Dual Edge	Dual	Solder Eyelet(s)	10 Áin	0.25 Ám	Copper Alloy	Gold	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	58	1.37 mm	0.054 "	1.78 mm	0.07 in	1	2	Semi Bellows	29	125 °C	-40 °C	Female
EDAC Inc. 857-029-457-108	Through Hole Right Angle	Black	Non Specified - Dual Edge	Dual	Solder			Copper Alloy	Tin	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	58	1.37 mm	0.054 "	1.78 mm	0.07 in	1	2	Semi Bellows	29	125 °C	-40 °C	Female	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 857-029-459-112	Through Hole Right Angle	Black	Non Specified - Single Edge	Single	Solder			Copper Alloy	Tin	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	29	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Semi Bellows	29	125 °C	-40 °C	Female	Side Mount Opening Unthreaded	3.25 mm	0.128 in
EDAC Inc. 857-029-459-107	Through Hole Right Angle	Black	Non Specified - Single Edge	Single	Solder			Copper Alloy	Tin	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	29	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Semi Bellows	29	125 °C	-40 °C	Female	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 857-029-505-108	Through Hole	Black	Non Specified - Single Edge	Single	Solder Eyelet(s)	10 Áin	0.25 Ám	Copper Alloy	Gold	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	29	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Semi Bellows	29	125 °C	-40 °C	Female	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 857-029-405-104	Through Hole	Black	Non Specified - Single Edge	Single	Solder Eyelet(s)			Copper Alloy	Tin	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	29	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Semi Bellows	29	125 °C	-40 °C	Female	Flush Mount Top Opening Unthreaded			3.96 mm	0.156 in
EDAC Inc. 857-029-427-102	Through Hole	Black	Non Specified - Single Edge	Single	Solder			Copper Alloy	Tin	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	29	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Semi Bellows	29	125 °C	-40 °C	Female	Flush Mount Top Opening Unthreaded			3.25 mm	0.128 "
EDAC Inc. 857-029-501-103	Through Hole	Black	Non Specified - Dual Edge	Dual	Solder Eyelet(s)	10 Áin	0.25 Ám	Copper Alloy	Gold	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	58	1.37 mm	0.054 "	1.78 mm	0.07 in	1	2	Semi Bellows	29	125 °C	-40 °C	Female	Floating Bobbin Flush Mount			2.95 mm	0.116 in
EDAC Inc. 857-029-505-101	Through Hole	Black	Non Specified - Single Edge	Single	Solder Eyelet(s)	10 Áin	0.25 Ám	Copper Alloy	Gold	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	29	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Semi Bellows	29	125 °C	-40 °C	Female
EDAC Inc. 857-029-547-108	Through Hole	Black	Non Specified - Single Edge	Single	Wire Wrap	10 Áin	0.25 Ám	Copper Alloy	Gold	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	29	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Semi Bellows	29	125 °C	-40 °C	Female	4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 126.47
Newark	Each	1	$ 151.77
		100	$ 93.27
		250	$ 82.36
		500	$ 73.64
		1000	$ 60.75

Description

General part information

857-029 Series

29 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
