895-048-558-804
ActiveEDAC Inc.

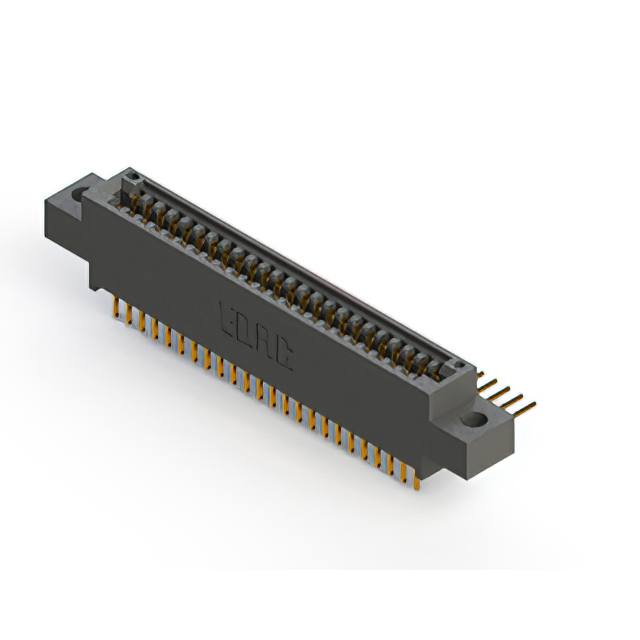

CONN EDGE DUAL FMALE 48POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-048-558-804
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 48POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-048-558-804 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 48 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
895-048 Series
...
| Part | Mounting Type | Color | Termination Rows | Termination | Number of Positions/Bay/Row [custom] | Number of Rows | Pitch [x] | Pitch [x] | Contact Type | Gender | Contact Finish | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Card Type | Flange Feature | Flange Feature | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | Black | 2 | Solder | 24 | 2 | 2.54 mm | 0.1 in | Cantilever | Female | Gold | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Dual Edge | 3.25 mm | 0.128 in | Dual | ||||
EDAC Inc. | Through Hole | Black | 2 | Solder | 24 | 2 | 2.54 mm | 0.1 in | Cantilever | Female | Gold | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Dual Edge | Dual | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |||
EDAC Inc. | Board Edge Straddle Mount | Black | 2 | Solder | 24 | 2 | 2.54 mm | 0.1 in | Cantilever | Female | Gold | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Dual Edge | Dual | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Card Extender | ||
EDAC Inc. | Through Hole | Black | 2 | Solder | 24 | 2 | 2.54 mm | 0.1 in | Cantilever | Female | Gold | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Dual Edge | 3.25 mm | 0.128 in | Dual | ||||
EDAC Inc. | Through Hole | Black | 1 | Wire Wrap | 48 | 1 | 2.54 mm | 0.1 in | Cantilever | Female | Gold | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Single Edge | 3.25 mm | 0.128 in | Single | ||||
EDAC Inc. | Through Hole Right Angle | Black | 2 | Solder | 24 | 2 | 2.54 mm | 0.1 in | Cantilever | Female | Gold | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Dual Edge | Dual | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | |||
EDAC Inc. | Through Hole | Black | 2 | Solder | 24 | 2 | 2.54 mm | 0.1 in | Cantilever | Female | Gold | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Dual Edge | Dual | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Board Edge Straddle Mount | Black | 2 | Solder | 24 | 2 | 2.54 mm | 0.1 in | Cantilever | Female | Gold | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Dual Edge | Dual | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Card Extender | ||
EDAC Inc. | Board Edge Straddle Mount | Black | 2 | Solder | 24 | 2 | 2.54 mm | 0.1 in | Cantilever | Female | Gold | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Dual Edge | 3.25 mm | 0.128 in | Dual | Card Extender | |||
EDAC Inc. | Through Hole | Black | 2 | Solder Eyelet(s) | 24 | 2 | 2.54 mm | 0.1 in | Cantilever | Female | Gold | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Dual Edge | 3.25 mm | 0.128 in | Dual | Side Mount Opening Unthreaded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 72.04 | |
Description
General part information
895-048 Series
48 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
