EPL.0S.250.CLN

Active

LEMO

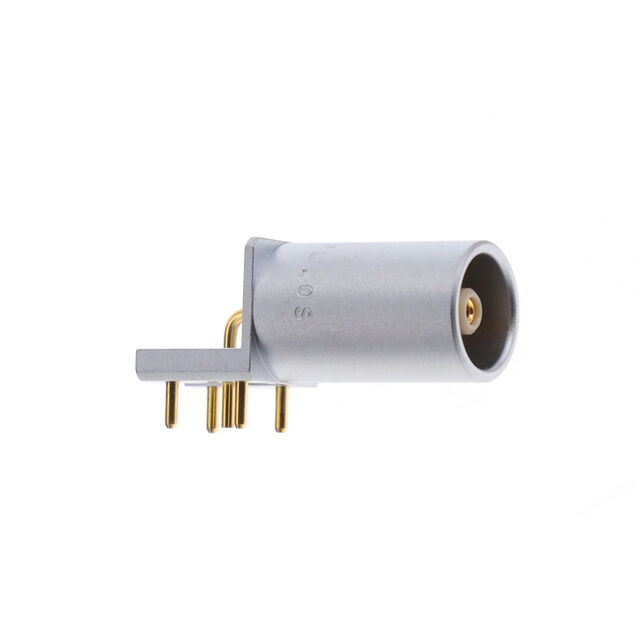

CONN COAX RCPT R/A 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog

EPL.0S.250.CLN

Active

LEMO

CONN COAX RCPT R/A 50 OHM PCB

Deep-Dive with AI

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EPL.0S.250.CLN	EPL.0S Series

Body Finish	Chrome	Nickel, Chrome, Gold
Body Material	Brass	Brass
Cable Group	174A, 188A, 196A, 316B, 178B, RG-122, 174	178, RG-174, 174A, 188A, 196A, 316B, 178B, RG-122, 174
Center Contact Material	Beryllium Copper	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	Coaxial	Triaxial, Coaxial
Connector Type	Receptacle, Female Socket	Receptacle, Female Socket, Male Pin, Female Sockets, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	-	Gold
Contact Material	-	Bronze, Brass
Contact Termination	Solder	Solder
Current Rating (Amps)	-	4.5 - 12 A
Dielectric Material	Polyetheretherketone (PEEK)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull
Features	-	Ground
Housing Color	Silver	Silver, Gold
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP50	IP50
Insert Material	-	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	-	UL94 V-0
Mating Cycles	1000	1000
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Ports	1	1
Number of Positions	-	1 - 4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	-	Keyed
Primary Material	-	Metal
Shell Finish	-	Nickel, Gold
Shell Material	-	Brass and Polyphenylene Sulfide (PPS), Brass
Shell Size - Insert	-	116 - 304
Shield Termination	Solder	Solder
Shielding	-	Shielded
Termination	-	Solder

EPL.0S Series

CONN TRIAX RCPT R/A 50 OHM PCB

Part	Mating Cycles	Center Contact Material	Ingress Protection	Body Finish	Connector Style	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Housing Color	Impedance	Shield Termination	Number of Ports	Connector Type	Fastening Type	Center Contact Plating	Dielectric Material	Body Material	Contact Termination	Orientation	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Contact Material	Features	Insert Material	Shell Material	Termination	Shell Size - Insert	Material Flammability Rating	Shell Finish	Shielding	Number of Positions
LEMO EPL.0S.650.NTN	1000	Brass	IP50	Nickel	Triaxial	178, RG-174	-55 °C	250 °C	Through Hole, Right Angle	Silver	50 Ohms	Solder	1	Female Socket, Receptacle	Push-Pull	Gold	Polytetrafluoroethylene (PTFE)	Brass	Solder
LEMO EPL.0S.650.NTD	1000	Brass	IP50	Nickel	Triaxial	178, RG-174	-55 °C	250 °C	Through Hole, Right Angle	Silver	50 Ohms	Solder	1	Male Pin, Receptacle	Push-Pull	Gold	Polytetrafluoroethylene (PTFE)	Brass	Solder
LEMO EPL.0S.304.HLN			IP50				-55 °C	250 °C	Through Hole, Right Angle					Female Sockets, Male Pins, Receptacle	Push-Pull					Keyed	4.5 A	Metal	Gold	Brass, Bronze	Ground	Polyetheretherketone (PEEK)	Brass and Polyphenylene Sulfide (PPS)	Solder	304	UL94 V-0	Nickel	Shielded	4
LEMO EPL.0S.250.CLN	1000	Beryllium Copper	IP50	Chrome	Coaxial	174, 174A, 178B, 188A, 196A, 316B, RG-122	-55 °C	250 °C	Through Hole, Right Angle	Silver	50 Ohms	Solder	1	Female Socket, Receptacle	Push-Pull	Gold	Polyetheretherketone (PEEK)	Brass	Solder
LEMO EPL.0S.250.CTN	1000	Beryllium Copper	IP50	Chrome	Coaxial	174, 174A, 178B, 188A, 196A, 316B, RG-122	-55 °C	250 °C	Through Hole, Right Angle	Silver	50 Ohms	Solder	1	Female Socket, Receptacle	Push-Pull	Gold	Polytetrafluoroethylene (PTFE)	Brass	Solder
LEMO EPL.0S.302.HLN			IP50				-55 °C	250 °C	Through Hole, Right Angle					Female Sockets, Male Pins, Receptacle	Push-Pull					Keyed	4.5 A	Metal	Gold	Brass, Bronze	Ground	Polyetheretherketone (PEEK)	Brass and Polyphenylene Sulfide (PPS)	Solder	302	UL94 V-0	Nickel	Shielded	2
LEMO EPL.0S.116.DTL			IP50				-55 °C	250 °C	Through Hole, Right Angle					Receptacle, Female Sockets	Push-Pull					Keyed	12 A	Metal	Gold	Bronze	Ground	Polytetrafluoroethylene (PTFE)	Brass	Solder	116		Gold	Shielded	1
LEMO EPL.0S.250.DTN	1000	Beryllium Copper	IP50	Gold	Coaxial	174, 174A, 178B, 188A, 196A, 316B, RG-122	-55 °C	250 °C	Through Hole, Right Angle	Gold	50 Ohms	Solder	1	Female Socket, Receptacle	Push-Pull	Gold	Polytetrafluoroethylene (PTFE)	Brass	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.72
		10	$ 26.90
		25	$ 25.74
		50	$ 24.91
		100	$ 24.08
		250	$ 22.75

Description

General part information

EPL.0S Series

Coaxial Connector Receptacle, Female Socket 50 Ohms Through Hole, Right Angle Solder
