EPL.0S.304.HLN

Active

LEMO

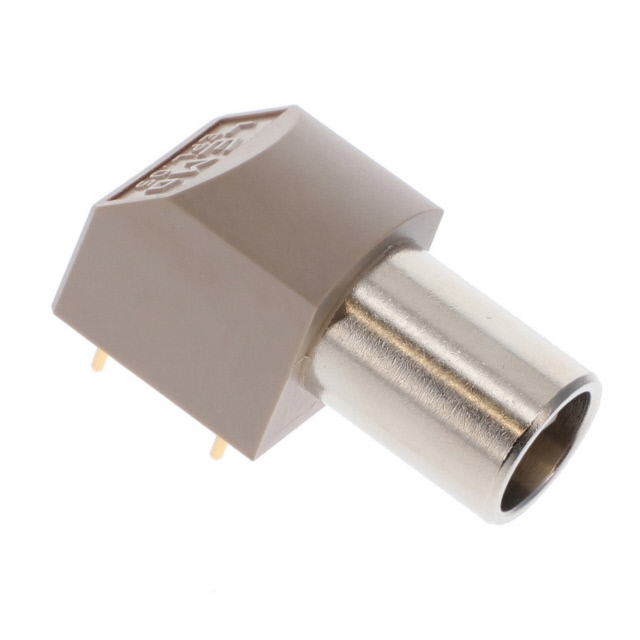

CONN CIRC RCPT 4POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EPL.0S.304.HLN

Active

LEMO

CONN CIRC RCPT 4POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.90
		10	$ 36.30
		25	$ 32.93
		50	$ 30.66
		100	$ 28.61
		250	$ 26.19

Description

General part information

EPL.0S Series

4 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EPL.0S.304.HLN	EPL.0S Series

Body Finish	-	Nickel, Chrome, Gold
Body Material	-	Brass
Cable Group	-	178, RG-174, 174A, 188A, 196A, 316B, 178B, RG-122, 174
Center Contact Material	-	Brass, Beryllium Copper
Center Contact Plating	-	Gold
Connector Style	-	Triaxial, Coaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Receptacle, Female Socket, Male Pin, Female Sockets, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder
Current Rating (Amps)	4.5 A	4.5 - 12 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull
Features	Ground	Ground
Housing Color	-	Silver, Gold
Impedance	-	50 Ohms
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Ports	-	1
Number of Positions	4	1 - 4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Gold
Shell Material	Brass and Polyphenylene Sulfide (PPS)	Brass and Polyphenylene Sulfide (PPS), Brass
Shell Size - Insert	304	116 - 304
Shield Termination	-	Solder
Shielding	Shielded	Shielded
Termination	Solder	Solder

EPL.0S Series

CONN TRIAX RCPT R/A 50 OHM PCB

Part	Mating Cycles	Center Contact Material	Ingress Protection	Body Finish	Connector Style	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Housing Color	Impedance	Shield Termination	Number of Ports	Connector Type	Fastening Type	Center Contact Plating	Dielectric Material	Body Material	Contact Termination	Orientation	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Contact Material	Features	Insert Material	Shell Material	Termination	Shell Size - Insert	Material Flammability Rating	Shell Finish	Shielding	Number of Positions
LEMO EPL.0S.650.NTN	1000	Brass	IP50	Nickel	Triaxial	178, RG-174	-55 °C	250 °C	Through Hole, Right Angle	Silver	50 Ohms	Solder	1	Female Socket, Receptacle	Push-Pull	Gold	Polytetrafluoroethylene (PTFE)	Brass	Solder
LEMO EPL.0S.650.NTD	1000	Brass	IP50	Nickel	Triaxial	178, RG-174	-55 °C	250 °C	Through Hole, Right Angle	Silver	50 Ohms	Solder	1	Male Pin, Receptacle	Push-Pull	Gold	Polytetrafluoroethylene (PTFE)	Brass	Solder
LEMO EPL.0S.304.HLN			IP50				-55 °C	250 °C	Through Hole, Right Angle					Female Sockets, Male Pins, Receptacle	Push-Pull					Keyed	4.5 A	Metal	Gold	Brass, Bronze	Ground	Polyetheretherketone (PEEK)	Brass and Polyphenylene Sulfide (PPS)	Solder	304	UL94 V-0	Nickel	Shielded	4
