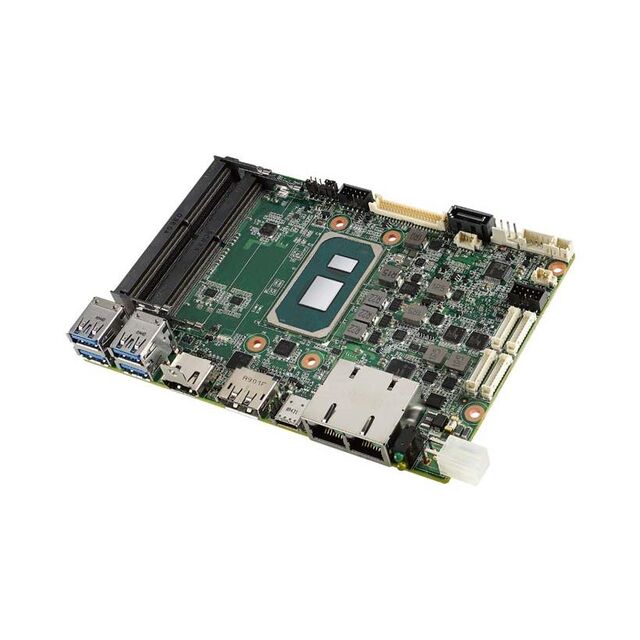

MIO-5375C3-P9A1

Active

Advantech Corp

SBC 3.9GHZ 2 CORE 64GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 3.9GHZ 2 CORE 64GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	MIO-5375C3-P9A1

Cooling Type	Fan
Core Processor	Intel Core i3-1115G4E
Ethernet	GbE (2)
Expansion Site/Bus	SMBus, LPC, I2C, SPI, PCIe, M.2, GPIO
Form Factor	3.5 in
Number of Cores	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	15 W
RAM Capacity/Installed	0 GB, 64 GB
RS-232 (422, 485)	2
Size / Dimension	146 mm
Size / Dimension	102 mm
Size / Dimension [x]	5.75 in
Size / Dimension [y]	4.02 in
Speed	3.9 GHz
Storage Interface	SATA 3.0 (1)
USB	USB 3.2
Video Outputs	Multi-Display, LCD, DP, LVDS, HDMI
Watchdog Timer	True

Part	RS-232 (422, 485)	Expansion Site/Bus	Speed	Operating Temperature [Max]	Operating Temperature [Min]	Storage Interface	Cooling Type	Ethernet	RAM Capacity/Installed	Digital I/O Lines	Power (Watts)	USB	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Form Factor	Number of Cores	Core Processor	Video Outputs	Size / Dimension	Size / Dimension
Advantech Corp MIO-5375C7X-Q4A1	2	LPC M.2 PCIe SMBus	4.4 GHz	85 °C	-40 °C	M.2 SATA III	Fan	GbE (2)	0 GB 64 GB	8	98.16 W	USB 3.0 (4) USB 3.0 Type-C (1)	101.6 mm	4 "	5.7 "	144.78 mm	3.5 in	4	Intel Core i7-1185GRE	DP eDP HDMI LCD LVDS Multi-Display
Advantech Corp MIO-5375C7X-Q4A1	2	LPC M.2 PCIe SMBus	4.4 GHz	85 °C	-40 °C	M.2 SATA III	Fan	GbE (2)	0 GB 64 GB	8	98.16 W	USB 3.0 (4) USB 3.0 Type-C (1)	101.6 mm	4 "	5.7 "	144.78 mm	3.5 in	4	Intel Core i7-1185GRE	DP eDP HDMI LCD LVDS Multi-Display
Advantech Corp MIO-5375C3-P9A1	2	GPIO I2C LPC M.2 PCIe SMBus SPI	3.9 GHz	60 °C	0 °C	SATA 3.0 (1)	Fan	GbE (2)	0 GB 64 GB		15 W	USB 3.2		4.02 in	5.75 in		3.5 in	2	Intel Core i3-1115G4E	DP HDMI LCD LVDS Multi-Display	146 mm	102 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Board Computer 3.9GHz 2 Core 64GB/0GB RAM Intel Core i3-1115G4E
