RF1-1A-DC-2-RL

Active

Switch Components

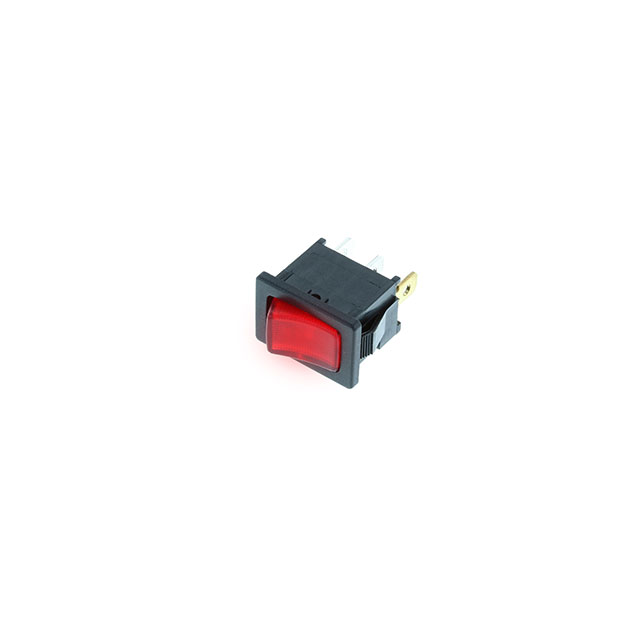

SWITCH ROCKER SPST 16A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RF1-1A-DC-2-RL

Active

Switch Components

SWITCH ROCKER SPST 16A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RF1-1A-DC-2-RL	RF1-1A Series

Actuator Marking	No Marking	No Marking, Vertical, ON OFF, O -, Dot
Actuator Type	Concave (Curved) - Illuminated	Concave (Curved) - Illuminated, Concave (Curved)
Approval Agency	CSA, cURus, ENEC	CSA, cURus, ENEC
Circuit	SPST	SPST
Color - Actuator/Cap	Red	Red, Black
Current Rating (Amps)	16 A	16 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	Red, LED	Red, LED
Illumination Voltage (Nominal)	12 VDC	12 VDC
Ingress Protection	-	IP40
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [x]	19.2 mm	19.2 mm
Panel Cutout Dimensions [y]	13 mm	13 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	-	125 V
Voltage Rating - DC	12 V	12 V

RF1-1A Series

SWITCH ROCKER SPST 16A 12V

Part	Mounting Type	Switch Function	Voltage Rating - DC	Illumination Type, Color	Color - Actuator/Cap	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Illumination Voltage (Nominal)	Actuator Marking	Termination Style	Approval Agency	Mechanical Life	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit	Voltage Rating - AC	Ingress Protection
Switch Components RF1-1A-DC-2-RL	Panel Mount, Snap-In	On-Off	12 V	LED, Red	Red	6000 Cycles	-25 °C	85 °C	16 A	12 VDC	No Marking	Quick Connect - 0.187" (4.7mm)	CSA, cURus, ENEC	10000 Steps	Concave (Curved) - Illuminated	13 mm	19.2 mm	SPST
Switch Components RF1-1A-DC-2-B-2	Panel Mount, Snap-In	On-Off	12 V		Black	6000 Cycles	-25 °C	85 °C	16 A, 16 A		ON OFF, Vertical	Quick Connect - 0.187" (4.7mm)	CSA, cURus, ENEC	10000 Steps	Concave (Curved)	13 mm	19.2 mm	SPST	125 V
Switch Components RF1-1A-AC-2-B-1	Panel Mount, Snap-In	On-Off			Black		-25 °C	85 °C	16 A		O -	Quick Connect - 0.187" (4.7mm)	CSA, cURus, ENEC		Concave (Curved)	13 mm	19.2 mm	SPST		IP40
Switch Components RF1-1A-AC-2-R-1	Panel Mount, Snap-In	On-Off			Red		-25 °C	85 °C	16 A		O -	Quick Connect - 0.187" (4.7mm)	CSA, cURus, ENEC		Concave (Curved)	13 mm	19.2 mm	SPST		IP40
Switch Components RF1-1A-DC-2-R-1	Panel Mount, Snap-In	On-Off	12 V		Red	6000 Cycles	-25 °C	85 °C	16 A, 16 A		O -	Quick Connect - 0.187" (4.7mm)	CSA, cURus, ENEC	10000 Steps	Concave (Curved)	13 mm	19.2 mm	SPST	125 V
Switch Components RF1-1A-AC-2-B-3	Panel Mount, Snap-In	On-Off			Black		-25 °C	85 °C	16 A		Dot	Quick Connect - 0.187" (4.7mm)	CSA, cURus, ENEC		Concave (Curved)	13 mm	19.2 mm	SPST		IP40
Switch Components RF1-1A-DC-2-B	Panel Mount, Snap-In	On-Off	12 V		Black	6000 Cycles	-25 °C	85 °C	16 A, 16 A		No Marking	Quick Connect - 0.187" (4.7mm)	CSA, cURus, ENEC	10000 Steps	Concave (Curved)	13 mm	19.2 mm	SPST	125 V
Switch Components RF1-1A-AC-2-B	Panel Mount, Snap-In	On-Off			Black		-25 °C	85 °C	16 A		No Marking	Quick Connect - 0.187" (4.7mm)	CSA, cURus, ENEC		Concave (Curved)	13 mm	19.2 mm	SPST		IP40
