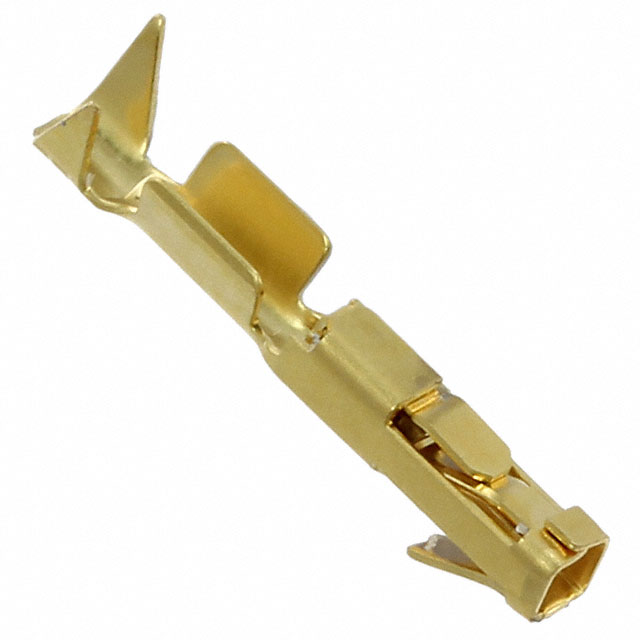

Specification	030-51307-001

Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Termination	Crimp
Contact Type	Female Socket
Features	Insulation Support
Termination Finish	Gold
Termination Finish Thickness	Flash
Type	Signal
Wire Gauge (AWG) (Max)	24 AWG
Wire Gauge (AWG) (Min)	22 AWG

030-5130 Series

Part	Contact Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Features	Termination Finish	Contact Form	Contact Finish Thickness	Contact Material	Contact Type	Termination Finish Thickness	Type	Contact Finish	Contact Finish Thickness (string set options)	Contact Finish Thickness
JAE Electronics 030-51304-003
JAE Electronics 030-51304-001	Crimp	28 AWG	24 AWG	Insulation Support	Gold	Stamped	4 µin	Phosphor Bronze	Female Socket	Flash	Signal	Gold
JAE Electronics 030-51304-002
JAE Electronics 030-51307-001	Crimp	24 AWG	22 AWG	Insulation Support	Gold	Stamped	0	Phosphor Bronze	Female Socket	Flash	Signal	Gold	Flash	Flash
JAE Electronics 030-51307-002	Crimp	24 AWG	22 AWG	Insulation Support	Gold	Stamped	11.8 µin	Phosphor Bronze	Female Socket	Flash	Signal	Gold
