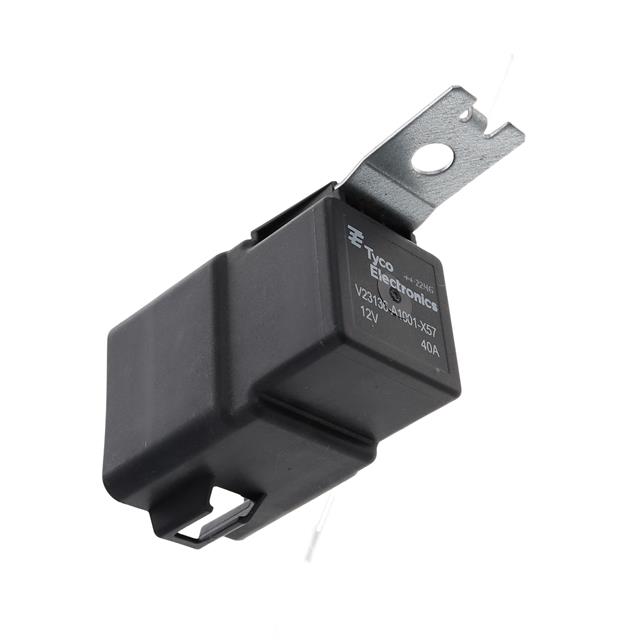

1-1414552-0

Active

TE Connectivity AMP Connectors

POWER FA V23136

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

POWER FA V23136

Technical Specifications

Parameters and characteristics for this part

POWER FA V23136

Part	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Must Operate Voltage	Coil Voltage	Coil Power	Contact Rating (Current)	Operate Time	Coil Resistance	Coil Type	Contact Material	Switching Voltage	Termination Style	Features	Contact Form	Release Time	Coil Current	Mounting Type
TE Connectivity AMP Connectors 1-1414552-0	125 °C	-40 °C	1.6 VDC	7.2 VDC	12 VDC	1.3 W	60 A	7 ms	114 Ohms	Non Latching	Silver Alloy	14 VDC	Quick Connect - 0.250" (6.3mm)	IP67 - Dust Tight, Waterproof	SPDT (1 Form C)	2 ms	105.3 mA	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

POWER FA V23136

Technical documentation and resources
