IQE013N04LM6ATMA1
ActiveOPTIMOS™ LOW-VOLTAGE POWER MOSFET 40V IN PQFN 3.3X3.3 SOURCE-DOWN -PACKAGE WITH INDUSTRY LEADING RDS(ON)
Deep-Dive with AI
Search across all available documentation for this part.
IQE013N04LM6ATMA1
ActiveOPTIMOS™ LOW-VOLTAGE POWER MOSFET 40V IN PQFN 3.3X3.3 SOURCE-DOWN -PACKAGE WITH INDUSTRY LEADING RDS(ON)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IQE013N04LM6ATMA1 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 205 A, 31 A |
| Drain to Source Voltage (Vdss) | 40 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 55 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 3900 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerTDFN |
| Power Dissipation (Max) | 2.5 W, 107 W |
| Rds On (Max) @ Id, Vgs [Max] | 1.35 mOhm |
| Supplier Device Package | PG-TSON-8-4 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IQE013 Series

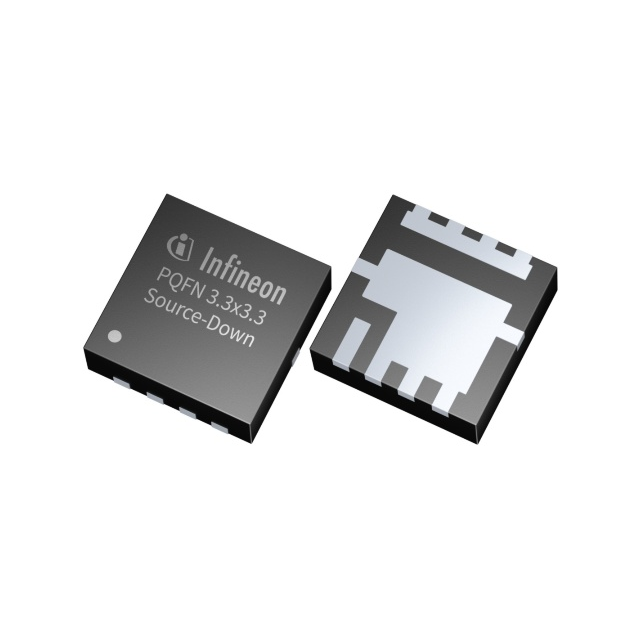

Infineon has extended its innovativeSource-Downfamily with the IQE013N04LM6 1.35mOhm, 40V in a 3.3x3.3 PQFN package. This best-in-class power MOSFET optimizes the end user experience by challenging the status quo in power density and form factor. One target in power tool design is to minimize the internal restrictions of PCB area requirements, enabling a more ergonomic design. Moving the inverter from the handle into the head minimizes the volume of thepower toolmotor housing while simultaneously keeping the torque of the tool at a reasonably high level for quick and easy action.
