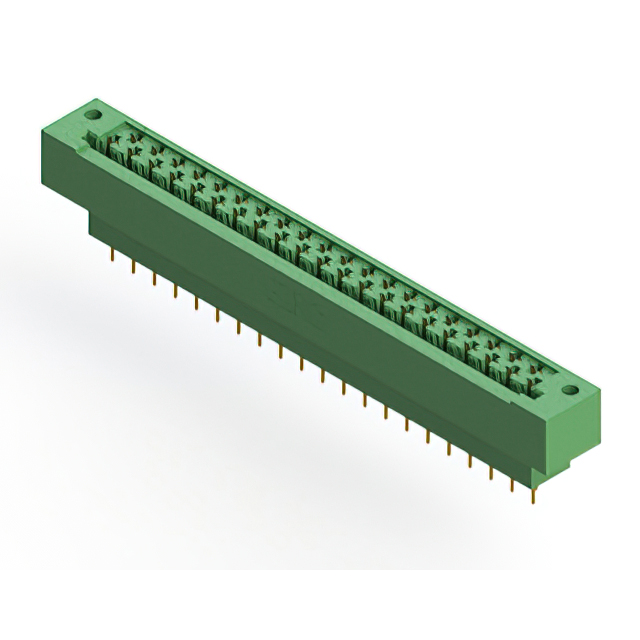

415-041-520-112

Active

EDAC Inc.

STANDARD CARD EDGE CONNECTORS METAL TO METAL

Deep-Dive with AI

Search across all available documentation for this part.

415-041-520-112

Active

EDAC Inc.

STANDARD CARD EDGE CONNECTORS METAL TO METAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	415-041-520-112

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Panel Mount
Number of Positions	41
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Termination	Solder
Termination Rows	2

415-041 Series

Part	Number of Positions	Number of Rows	Card Type	Termination	Flange Feature	Flange Feature	Contact Finish	Material - Insulation	Termination Rows	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Card Thickness	Card Thickness	Pitch [x]	Pitch [x]	Features	Contact Finish Thickness	Contact Finish Thickness	Gender	Color
EDAC Inc. 415-041-541-222	41	2	Non Specified - Dual Edge	Wire Wrap	3.25 mm	0.128 in	Gold	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	125 °C	-65 ░C	Copper Alloy	0.093 in	2.36 mm	0.2 in	5.08 mm	Card Guides	10 Áin	0.25 Ám	Female	Green
EDAC Inc. 415-041-500-222	41	2	Non Specified - Dual Edge	Solder Eyelet(s)	3.25 mm	0.128 in	Gold	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	125 °C	-65 ░C	Copper Alloy	0.093 in	2.36 mm	0.2 in	5.08 mm	Card Guides	10 Áin	0.25 Ám	Female	Green
EDAC Inc. 415-041-520-112	41	2	Non Specified - Dual Edge	Solder	3.25 mm	0.128 in	Gold	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	125 °C	-65 ░C	Copper Alloy	0.062 in	1.57 mm	0.2 in	5.08 mm		10 Áin	0.25 Ám	Female	Green
EDAC Inc. 415-041-520-222	41	2	Non Specified - Dual Edge	Solder	3.25 mm	0.128 in	Gold	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	125 °C	-65 ░C	Copper Alloy	0.093 in	2.36 mm	0.2 in	5.08 mm	Card Guides	10 Áin	0.25 Ám	Female	Green
EDAC Inc. 415-041-542-112	41	2	Non Specified - Dual Edge	Wire Wrap	3.25 mm	0.128 in	Gold	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	125 °C	-65 ░C	Copper Alloy	0.062 in	1.57 mm	0.2 in	5.08 mm		10 Áin	0.25 Ám	Female	Green
EDAC Inc. 415-041-541-212	41	2	Non Specified - Dual Edge	Wire Wrap	3.25 mm	0.128 in	Gold	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	125 °C	-65 ░C	Copper Alloy	0.062 in	1.57 mm	0.2 in	5.08 mm	Card Guides	10 Áin	0.25 Ám	Female	Green
EDAC Inc. 415-041-542-222	41	2	Non Specified - Dual Edge	Wire Wrap	3.25 mm	0.128 in	Gold	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	125 °C	-65 ░C	Copper Alloy	0.093 in	2.36 mm	0.2 in	5.08 mm	Card Guides	10 Áin	0.25 Ám	Female	Green
EDAC Inc. 415-041-540-122	41	2	Non Specified - Dual Edge	Wire Wrap	3.25 mm	0.128 in	Gold	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	125 °C	-65 ░C	Copper Alloy	0.093 in	2.36 mm	0.2 in	5.08 mm		10 Áin	0.25 Ám	Female	Green
EDAC Inc. 415-041-542-212	41	2	Non Specified - Dual Edge	Wire Wrap	3.25 mm	0.128 in	Gold	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	125 °C	-65 ░C	Copper Alloy	0.062 in	1.57 mm	0.2 in	5.08 mm	Card Guides	10 Áin	0.25 Ám	Female	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 36.34
Newark	Each	1	$ 40.89
		100	$ 33.31
		250	$ 31.12
		500	$ 28.95
		1000	$ 24.51

Description

General part information

415-041 Series

41 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
