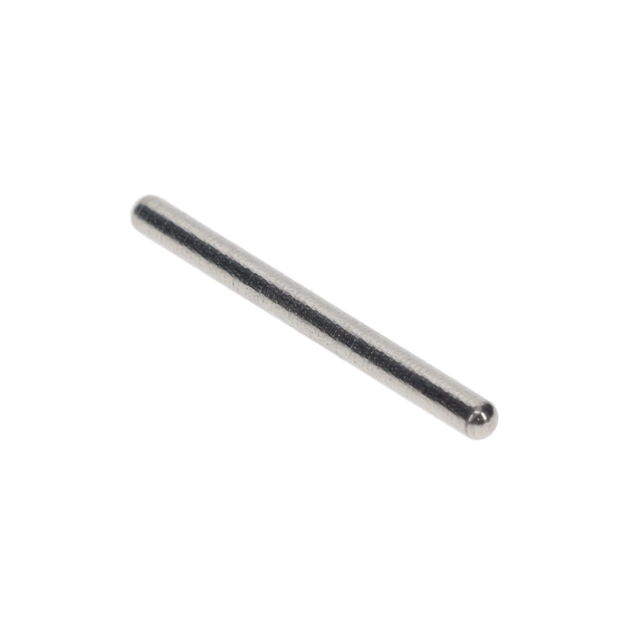

3560-2-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
STRAIGHT PINS
Deep-Dive with AI
Search across all available documentation for this part.
3560-2-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
STRAIGHT PINS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3560-2-00-80-00-00-03-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Insulation | Non-Insulated |
| Length - Overall | 19.05 mm |
| Length - Overall [x] | 0.75 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.52 mm |
| Pin Size - Above Flange [diameter] | 0.06 in |
| Pin Size - Below Flange [diameter] | 0.06 in |
| Pin Size - Below Flange [diameter] | 1.52 mm |
| Terminal Style | Smooth |
| Terminal Type | Single Post |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.91 | |
| 10 | $ 0.77 | |||
| 100 | $ 0.69 | |||
| 1000 | $ 0.50 | |||
| 5000 | $ 0.44 | |||
| 10000 | $ 0.42 | |||
Description
General part information
3560-2 Series
Single Post Terminal Connector Through Hole Tin 0.060" (1.52mm) Dia
