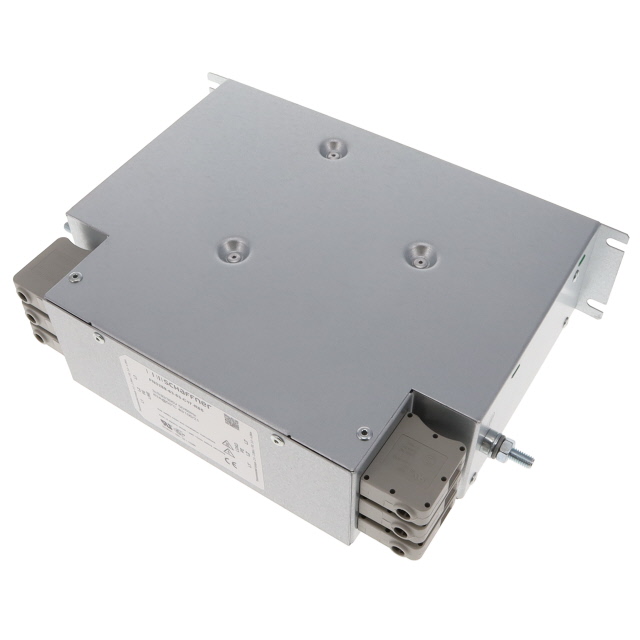

FN3288-63-53-C17-R65

Active

TE Connectivity Raychem Cable Protection

POWER LINE FILTERS 3 PHASE SLIM BOOK STYLE HIGH PERFORMANCE LINE FILTER 480VAC, 63A, STB TERMINAL 53, CY 47NF

Deep-Dive with AI

Search across all available documentation for this part.

FN3288-63-53-C17-R65

Active

TE Connectivity Raychem Cable Protection

POWER LINE FILTERS 3 PHASE SLIM BOOK STYLE HIGH PERFORMANCE LINE FILTER 480VAC, 63A, STB TERMINAL 53, CY 47NF

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN3288-63-53-C17-R65

Applications	Power Drive Systems, Inverters
Approval Agency	CE, ENEC, UR
Configuration	Two Stage
Current	63 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	Chassis Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Ground/Neutral)	305 V
Voltage - Rated AC [Max]	530 V
Voltage - Rated AC [Min]	305 V

Schaffner FN3288 Series

Power Line Filters 3 Phase Slim Book Style High Performance Line Filter 690VAC, 50A, STB Terminal 53, Cy 1uF

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current	Voltage - Rated AC (Phase to Ground/Neutral)	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC (Phase to Phase)	Approval Agency	Applications	Termination Style	Filter Type	Configuration	Mounting Type	Voltage - Rated AC [Min]	Voltage - Rated AC [Max]	Voltage - Rated AC
TE Connectivity Raychem Cable Protection FN3288HV-16-44-C25-R65	100 °C	-40 °C	16 A	440 V	60 Hz	DC	760 V	CE ENEC UKCA UR	Inverters Power Drive Systems	Terminal Block	Three Phase (Delta)	Two Stage	Chassis Mount
TE Connectivity Raychem Cable Protection FN3288-50-53-C26-R65	100 °C	-40 °C	50 A	305 V	60 Hz	DC			Inverters Power Drive Systems	Terminal Block	Three Phase (Delta)	Two Stage	Chassis Mount	305 V	530 V
TE Connectivity Raychem Cable Protection FN3288IT-63-53-C34-R60	100 °C	-40 °C	63 A		60 Hz	DC			Inverters Power Drive Systems	Terminal Block	Three Phase (Delta)	Two Stage	Chassis Mount
TE Connectivity Raychem Cable Protection FN3288-63-53-C17-R65	100 °C	-40 °C	63 A	305 V	60 Hz	DC		CE ENEC UR	Inverters Power Drive Systems	Terminal Block	Three Phase (Delta)	Two Stage	Chassis Mount	305 V	530 V
TE Connectivity Raychem Cable Protection FN3288-100-35-C26-R65	100 °C	-40 °C	100 A	305 V	60 Hz	DC			Inverters Power Drive Systems	Terminal Block	Three Phase (Delta)	Two Stage	Chassis Mount	305 V	530 V
TE Connectivity Raychem Cable Protection FN3288-125-35-C35-R65	100 °C	-40 °C	125 A	305 V	60 Hz	DC			Inverters Power Drive Systems	Terminal Block	Three Phase (Delta)	Two Stage	Chassis Mount	305 V	530 V
TE Connectivity Raychem Cable Protection FN3288HVIT-40-33-C43-R60	100 °C	-40 °C	40 A		60 Hz	DC			Inverters Power Drive Systems	Terminal Block	Three Phase (Delta)	Two Stage	Chassis Mount			760 V
TE Connectivity Raychem Cable Protection FN3288IT-125-35-C34-R60	100 °C	-40 °C	125 A		60 Hz	DC			Inverters Power Drive Systems	Terminal Block	Three Phase (Delta)	Two Stage	Chassis Mount
TE Connectivity Raychem Cable Protection FN3288-10-44-C34-R65	100 °C	-40 °C	10 A	305 V	60 Hz	DC			Inverters Power Drive Systems	Terminal Block	Three Phase (Delta)	Two Stage	Chassis Mount	305 V	530 V
TE Connectivity Raychem Cable Protection FN3288HVIT-63-53-C43-R60	100 °C	-40 °C	63 A		60 Hz	DC			Inverters Power Drive Systems	Terminal Block	Three Phase (Delta)	Two Stage	Chassis Mount			760 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 310.47
		12	$ 264.52
Sager	N/A	1	$ 290.15
		2	$ 282.41
		5	$ 275.08
		24	$ 256.83

Description

General part information

Schaffner FN3288 Series

Power Line Filters 3 Phase Slim Book Style High Performance Line Filter 690VAC, 50A, STB Terminal 53, Cy 1uF

Documents

Technical documentation and resources

No documents available
