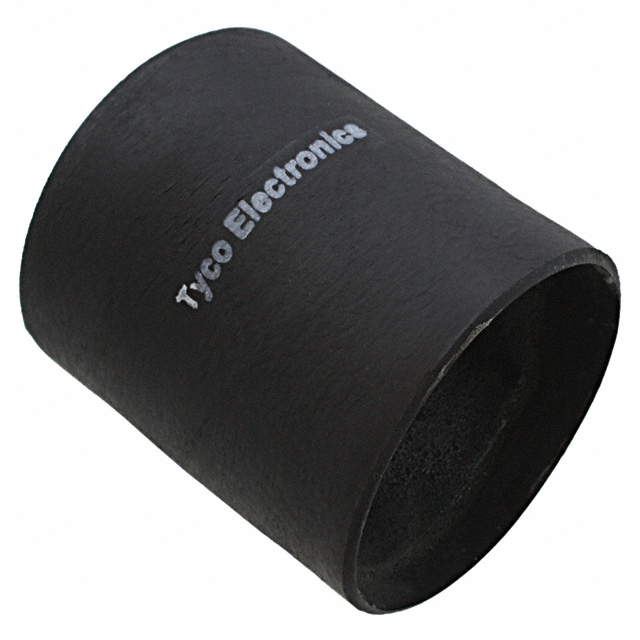

HRHT-2/3

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 1-1/2" BLACK

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 1-1/2" BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	HRHT-2/3

Color	Black
Features	Adhesive Lined, Flame Retardant
Inner Diameter - Recovered [diameter]	5.84 mm
Inner Diameter - Recovered [diameter]	0.23 in
Inner Diameter - Supplied [diameter]	38.1 mm
Inner Diameter - Supplied [diameter]	1.5 in
Length	3 "
Length	76.2 mm
Length	0.25 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.155 "
Recovered Wall Thickness	3.94 mm
Shelf Life	36 Months
Shrink Temperature	135 C
Shrinkage Ratio	6 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Flexible

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Length	Length	Length	Shrinkage Ratio	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Features	Type	Storage/Refrigeration Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Shrink Temperature	Shelf Life	Recovered Wall Thickness	Recovered Wall Thickness	Length
TE Connectivity Raychem Cable Protection HRHT-3/6	50.8 mm	2 in	Black	152.4 mm	6 "	0.5 '	6 to 1	Polyolefin (PO) Irradiated	9.14 mm	0.36 in	Adhesive Lined Flame Retardant	Tubing Flexible	35 °C	135 °C	-55 °C	135 C	36 Months	0.155 "	3.94 mm
TE Connectivity Raychem Cable Protection HRHT-1/3			Black	76.2 mm	3 "		6 to 1	Polyolefin (PO) Irradiated	3.05 mm	0.12 in	Adhesive Lined Flame Retardant	Tubing Flexible	35 °C	135 °C	-55 °C	135 C	36 Months	0.155 "	3.94 mm	0.25 ft
TE Connectivity Raychem Cable Protection HRHT-2/3	38.1 mm	1.5 in	Black	76.2 mm	3 "		6 to 1	Polyolefin (PO) Irradiated	5.84 mm	0.23 in	Adhesive Lined Flame Retardant	Tubing Flexible	35 °C	135 °C	-55 °C	135 C	36 Months	0.155 "	3.94 mm	0.25 ft
TE Connectivity Raychem Cable Protection HRHT-1/6			Black	152.4 mm	6 "	0.5 '	6 to 1	Polyolefin (PO) Irradiated	3.05 mm	0.12 in	Adhesive Lined Flame Retardant	Tubing Flexible	35 °C	135 °C	-55 °C	135 C	36 Months	0.155 "	3.94 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 1.500" (38.10mm) 6 to 1 Black 0.250' (76.20mm, 3.00")
