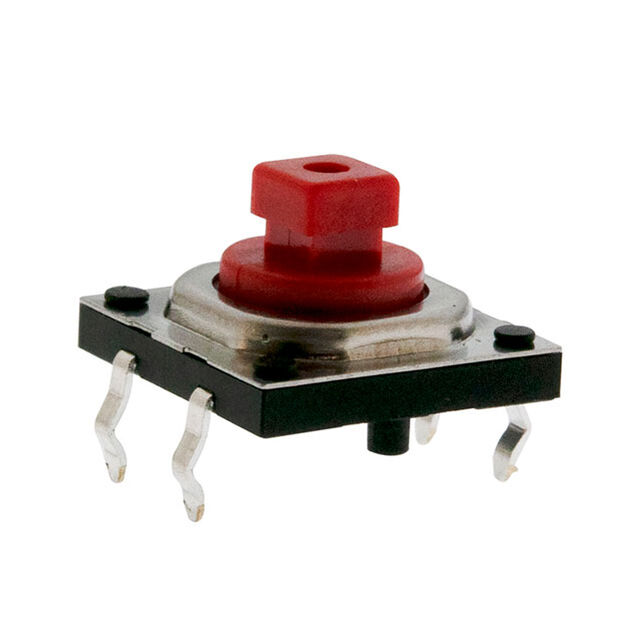

TL6300AF260QP

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL6300AF260QP

Actuator Height off PCB, Vertical [z]	7.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Through Hole
Operating Force	260 gf
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	12 mm
Outline [y]	12 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Ingress Protection	Actuator Height off PCB, Vertical [z]	Switch Travel [custom]	Mounting Type	Outline [y]	Outline [x]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Rating @ Voltage	Actuator Type	Actuator Orientation	Switch Function	Mechanical Life	Circuit	Illumination	Operating Force
E-Switch TL6300AF260QP	IP67 - Dust Tight Waterproof	7.3 mm	0.3 mm	Through Hole	12 mm	12 mm	90 °C	-40 °C	PC Pin	0.05 A 12 VDC	Plunger for Cap	Top Actuated	Off-Mom	10000000 Cycles	SPST-NO	Non-Illuminated	260 gf
