R141653000

Active

Radiall USA, Inc.

BNC / RIGHT ANGLE JACK RECEPTACL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / RIGHT ANGLE JACK RECEPTACL

Technical Specifications

Parameters and characteristics for this part

Specification	R141653000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Number of Ports	Mating Cycles	Body Material	Impedance	Mounting Type	Contact Termination	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Center Contact Material	Connector Type	Connector Style	Mounting Feature	Body Finish	Shield Termination	Center Contact Plating	Fastening Type	Housing Color	Voltage Rating
Radiall USA, Inc. R141654000	1	500	Brass	50 Ohms	Panel Mount Right Angle	Solder Cup	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	4 GHz	Beryllium Copper	Female Socket Jack	BNC	Flange	Nickel	Solder	Gold	Bayonet Lock	Silver	500 V
Radiall USA, Inc. R141653000	1	500	Brass	50 Ohms	Panel Mount Right Angle	Solder Cup	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	4 GHz	Beryllium Copper	Female Socket Jack	BNC	Flange	Nickel	Solder	Gold	Bayonet Lock	Silver	500 V
Radiall USA, Inc. R141654000W	1	500	Brass	50 Ohms	Panel Mount Right Angle	Solder Cup	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	4 GHz	Beryllium Copper	Female Socket Jack	BNC	Flange	Nickel	Solder	Gold	Bayonet Lock	Silver	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 37.29

General part information

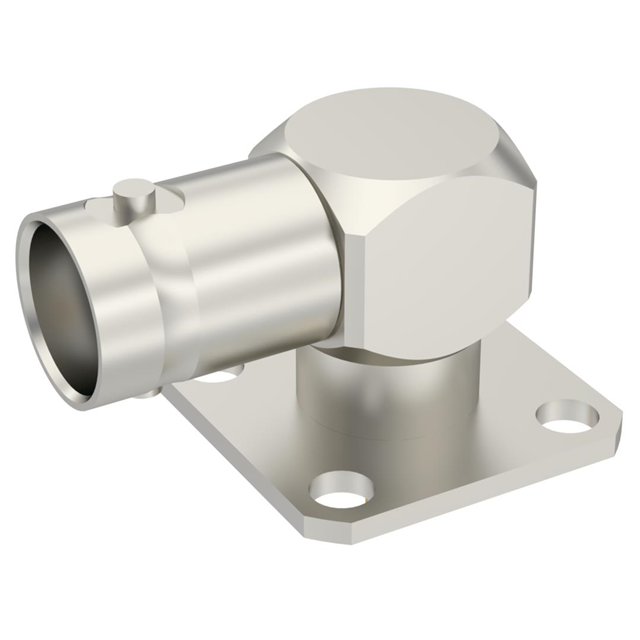

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Right Angle Solder Cup
