76003WS 0081000

Active

Belden Inc.

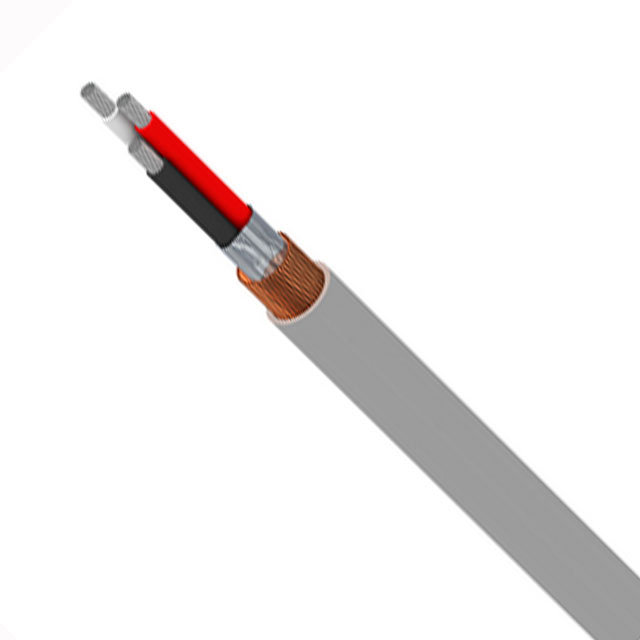

CABLE 3COND 28AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 28AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	76003WS 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	4.57 mm
Jacket (Insulation) Diameter [diameter]	0.18 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Spiral
Voltage	300 V
Wire Gauge	28 AWG

Part	Jacket Color	Conductor Material	Features	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Number of Conductors	Shield Coverage	Jacket (Insulation) Material	Cable Type	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Length [x]	Length [x]
Belden Inc. 76003WS 0081000	Chrome	Copper Tinned	Oil Resistant	1000 ft	304.8 m	0.04 in	1.016 mm	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	36 AWG	7	28 AWG	3	90 % 100 %	Poly-Vinyl Chloride (PVC)	Multi-Conductor	300 V	4.57 mm	0.18 in	Foil Spiral
Belden Inc. 76003WS 008500	Chrome	Copper Tinned	Oil Resistant			0.04 in	1.016 mm	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	36 AWG	7	28 AWG	3	90 % 100 %	Poly-Vinyl Chloride (PVC)	Multi-Conductor	300 V	4.57 mm	0.18 in	Foil Spiral	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.90
LCSC	Piece	1	$ 0.38

General part information

3 Conductor Multi-Conductor Cable Chrome 28 AWG Foil, Spiral 1000.0' (304.8m)
