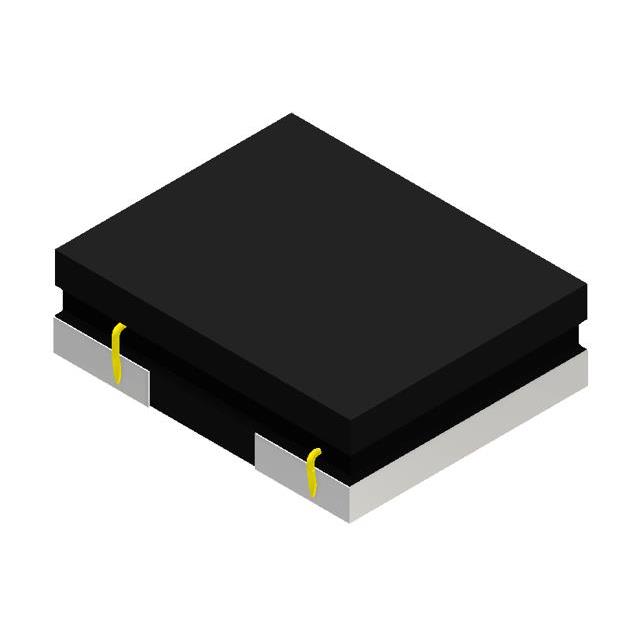

HPC 252010BMV-100M

Active

TAI-TECH Advanced Electronics Co., Ltd.

FIXED IND 10UH 800MA 0.552OHM SM

Search across all available documentation for this part.

Active

TAI-TECH Advanced Electronics Co., Ltd.

FIXED IND 10UH 800MA 0.552OHM SM

Technical Specifications

Parameters and characteristics commom to parts in this series

FIXED IND 10UH 800MA 0.552OHM SM

Part	DC Resistance (DCR) [Max]	Type	Current - Saturation (Isat)	Inductance Frequency - Test	Supplier Device Package	Inductance	Current Rating (Amps)	Material - Core	Shielding	Tolerance	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
TAI-TECH Advanced Electronics Co., Ltd. HPC 252010BMV-100M	552 mOhm	Wirewound	650 mA	100 kHz	252010	10 µH	800 mA	Ferrite	Shielded	20 %	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	-55 °C	125 °C	1008	AEC-Q200	0.039 "	1 mm
TAI-TECH Advanced Electronics Co., Ltd. HPC 252010BMV-1R0M	72 mOhm	Wirewound	2.3 A	100 kHz	252010	1 µH	2.4 A	Ferrite	Shielded	20 %	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	-55 °C	125 °C	1008	AEC-Q200	0.039 "	1 mm
TAI-TECH Advanced Electronics Co., Ltd. HPC 252010BMV-4R7M	300 mOhm	Wirewound	1.1 A	100 kHz	252010	4.7 ÁH	1.2 A	Ferrite	Shielded	20 %	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	-55 °C	125 °C	1008	AEC-Q200	0.039 "	1 mm
TAI-TECH Advanced Electronics Co., Ltd. HPC 252010BMV-2R2M	132 mOhm	Wirewound	1.3 A	100 kHz	252010	2.2 µH	1.8 A	Ferrite	Shielded	20 %	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	-55 °C	125 °C	1008	AEC-Q200	0.039 "	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µH Shielded Wirewound Inductor 800 mA 552mOhm Max 1008 (2520 Metric)
