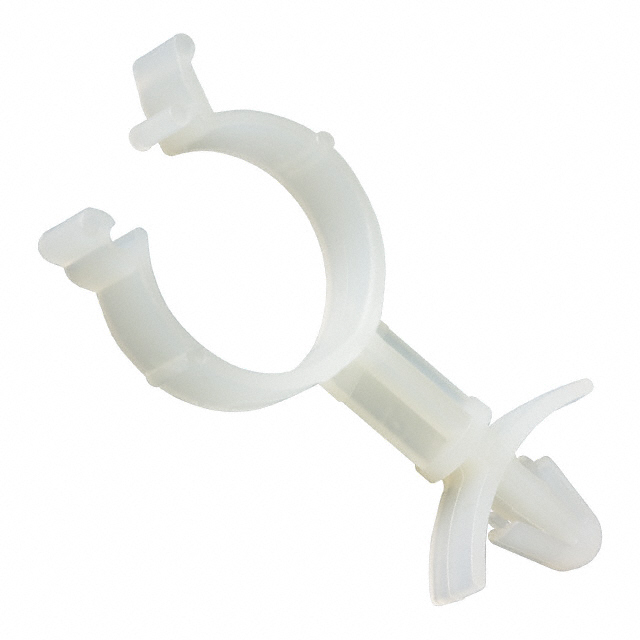

WS50-50-C

Active

Panduit Corp

CABLE MANAGEMENT, WIRE CLIP STANDOFF NYLON 6/6 NATURAL PUSH BARB 11.9MM

Search across all available documentation for this part.

Active

Panduit Corp

CABLE MANAGEMENT, WIRE CLIP STANDOFF NYLON 6/6 NATURAL PUSH BARB 11.9MM

Technical Specifications

Parameters and characteristics for this part

Specification	WS50-50-C

Color	Natural
Height [diameter]	1.22 in
Height [diameter]	30.99 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size [custom]	0.47 in
Opening Size [custom]	11.94 mm
Panel Hole Size [Max]	4.88 mm
Panel Hole Size [Max]	0.192 in
Panel Hole Size [Min]	4.75 mm
Panel Hole Size [Min]	0.187 in
Panel Thickness [Max]	2.03 mm
Panel Thickness [Max]	0.08 in
Panel Thickness [Min]	0.03 in
Panel Thickness [Min]	0.76 mm
Type	Clip, Wire Saddle
Type Attributes	Round, Locking, Standoff
Width [x]	0.22 in
Width [x]	5.59 mm

CABLE MANAGEMENT, WIRE CLIP STANDOFF NYLON 6/6 NATURAL PUSH BARB 11.9MM

Part	Mounting Type	Material	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Color	Height [diameter]	Height [diameter]	Type	Material Flammability Rating	Width [x]	Width [x]	Type Attributes	Opening Size [custom]	Opening Size [custom]
Panduit Corp WS50-50-C	Arrowhead, Winged	Polyamide (PA66), Nylon 6/6	4.75 mm	4.88 mm	0.187 in	0.192 in	2.03 mm	0.08 in	0.03 in	0.76 mm	Natural	1.22 in	30.99 mm	Clip, Wire Saddle	UL94 V-2	0.22 in	5.59 mm	Locking, Round, Standoff	0.47 in	11.94 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Clip, Wire Saddle Natural Arrowhead, Winged 0.470" (11.94mm)

Technical documentation and resources

No documents available
