5223-36
ActivePomona Electronics
CABLE ASSEMBLY COAXIAL 0.914M 20AWG BNC TO BNC PL-PL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5223-36 |
|---|---|
| 1st Connector | Triax Plug |
| 1st Contact Gender | Male |
| 2nd Connector | Triax Plug |
| 2nd Contact Gender | Male |
| Cable Type | Belden 9222 |
| Color | Yellow |
| Features | Shielded |
| Length | 91.44 cm |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | BNC 3 Lug Triax to BNC 3 Lug Triax |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 139.99 | |
| 25 | $ 136.84 | |||
Description
General part information
5223 Series

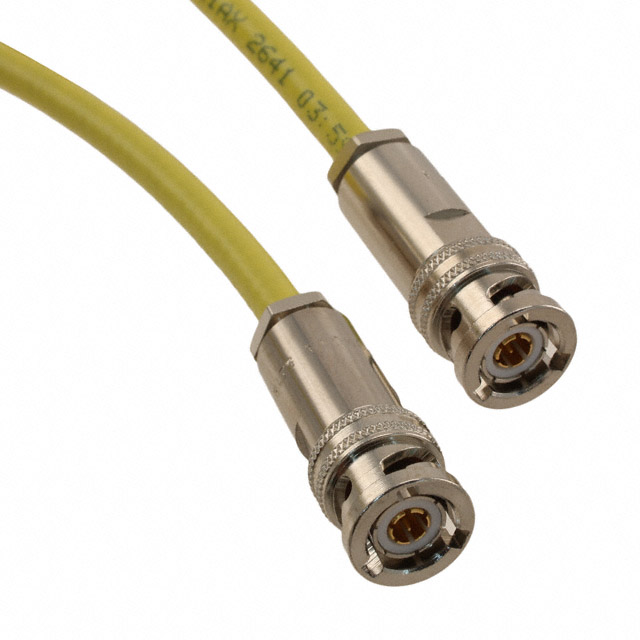

Cable Assembly Coaxial BNC 3 Lug Triax to BNC 3 Lug Triax Belden 9222 36.00" (914.40mm)
