CRM1206-JW-682ELF

Active

Bourns Inc.

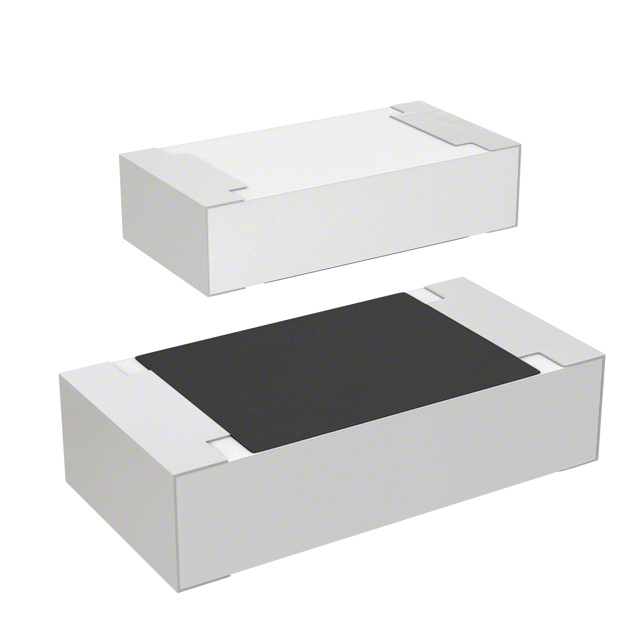

SMD CHIP RESISTOR, 6.8 KOHM, ± 5%, 500 MW, 1206 [3216 METRIC], THICK FILM, HIGH POWER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

CRM1206-JW-682ELF

Active

Bourns Inc.

SMD CHIP RESISTOR, 6.8 KOHM, ± 5%, 500 MW, 1206 [3216 METRIC], THICK FILM, HIGH POWER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CRM1206-JW-682ELF

Composition	Thick Film
Features	Current Sense
Height - Seated (Max) [Max]	0.026 in
Height - Seated (Max) [Max]	0.65 mm
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	6.8 kOhms
Size / Dimension [x]	3.1 mm
Size / Dimension [x]	0.122 "
Size / Dimension [y]	1.6 mm
Size / Dimension [y]	0.063 in
Supplier Device Package	1206
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

CRM1206 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Number of Terminations	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power (Watts)	Power (Watts)	Features	Composition	Package / Case	Resistance	Tolerance
Bourns Inc. CRM1206-FX-6803ELF	155 °C	-55 °C	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	2	1206	0.026 in	0.65 mm	0.5 W	0.5 W	Current Sense	Thick Film	1206 (3216 Metric)	680 kOhms	1 %
Bourns Inc. CRM1206-JW-682ELF	155 °C	-55 °C	1.6 mm	3.1 mm	0.063 in	0.122 "	200 ppm/°C	2	1206	0.026 in	0.65 mm	0.5 W	0.5 W	Current Sense	Thick Film	1206 (3216 Metric)	6.8 kOhms	5 %
Bourns Inc. CRM1206-FX-7R50ELF	155 °C	-55 °C	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	2	1206	0.026 in	0.65 mm	0.5 W	0.5 W	Current Sense	Thick Film	1206 (3216 Metric)	7.5 Ohms	1 %
Bourns Inc. CRM1206-JX-R160ELF	155 °C	-55 °C	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	2	1206	0.026 in	0.65 mm	0.5 W	0.5 W	Current Sense	Thick Film	1206 (3216 Metric)	160 mOhms	5 %
Bourns Inc. CRM1206-FX-R100ELF	155 °C	-55 °C	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	2	1206	0.026 in	0.65 mm	0.5 W	0.5 W	Current Sense	Thick Film	1206 (3216 Metric)	0.1 Ohms	1 %
Bourns Inc. CRM1206-FX-1R80ELF	155 °C	-55 °C	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	2	1206	0.026 in	0.65 mm	0.5 W	0.5 W	Current Sense	Thick Film	1206 (3216 Metric)	1.8 Ohms	1 %
Bourns Inc. CRM1206-FX-47R0ELF	155 °C	-55 °C	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	2	1206	0.026 in	0.65 mm	0.5 W	0.5 W	Current Sense	Thick Film	1206 (3216 Metric)	47 Ohms	1 %
Bourns Inc. CRM1206-FX-R680ELF	155 °C	-55 °C	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	2	1206	0.026 in	0.65 mm	0.5 W	0.5 W	Current Sense	Thick Film	1206 (3216 Metric)	680 mOhms	1 %
Bourns Inc. CRM1206-JW-161ELF	155 °C	-55 °C	1.6 mm	3.1 mm	0.063 in	0.122 "	200 ppm/°C	2	1206	0.026 in	0.65 mm	0.5 W	0.5 W	Current Sense	Thick Film	1206 (3216 Metric)	160 Ohms	5 %
Bourns Inc. CRM1206-JW-270ELF	155 °C	-55 °C	1.6 mm	3.1 mm	0.063 in	0.122 "	200 ppm/°C	2	1206	0.026 in	0.65 mm	0.5 W	0.5 W	Current Sense	Thick Film	1206 (3216 Metric)	27 Ohms	5 %
