General part information

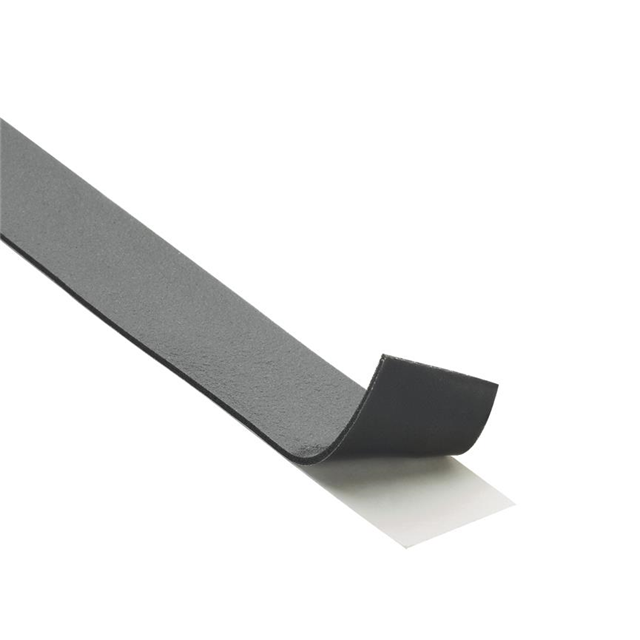

Single Coated Foam Tape Acrylic Adhesive Black 4.00" (101.60mm) X 8.33' (2.54m) 2.78 yds
Technical documentation and resources
Parameters and characteristics for this part
| Specification | BFS100X2000 |
|---|---|
| Adhesive | Acrylic |
| Backing, Carrier | Vinyl |
| Color | Black |
| Length | 2.54 m |
| Length | 2.78 yds |
| Length | 8.33 ft |
| Tape Type | Single Coated Foam |
| Temperature Range [Max] | 70 °C, 158 F |
| Temperature Range [Min] | 50 °F, 50 F |
| Thickness | 1.6 mm |
| Thickness | 0.063 " |
| Thickness | 63 mils |
| Usage | Sealing |
| Width [x] | 4 " |
| Width [x] | 101.6 mm |
ADHESIVE-BACKED FOAM STRIPS, 1/16" (1.6M
| Part | Temperature Range [Min] | Temperature Range [Max] | Length | Length | Length | Color | Thickness | Thickness | Thickness | Backing, Carrier | Width [x] | Width [x] | Usage | Tape Type | Adhesive |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panduit Corp BFS100X2000 | 50 °F, 50 F | 70 °C, 158 F | 2.54 m | 2.78 yds | 8.33 ft | Black | 1.6 mm | 0.063 " | 63 mils | Vinyl | 4 " | 101.6 mm | Sealing | Single Coated Foam | Acrylic |
