337-040-521-802
ActiveEDAC Inc.

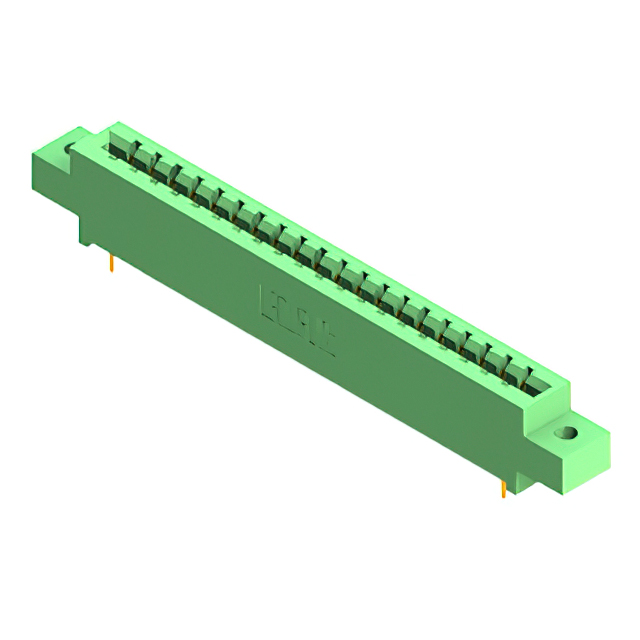

3.96MM STRAIGHT 40P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
337-040-521-802
ActiveEDAC Inc.
3.96MM STRAIGHT 40P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-040-521-802 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
337-040 Series
...
| Part | Contact Finish | Material - Insulation | Flange Feature | Flange Feature | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Color | Card Type | Contact Material | Gender | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions | Pitch [x] | Pitch [x] | Number of Rows | Mounting Type | Termination | Termination Rows | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Polyester Thermoplastic | 3.25 mm | 0.128 in | Dual | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | Copper Alloy | Female | 20 | 20 | 20 | 40 | 0.156 in | 3.96 mm | 2 | Through Hole | Solder | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Gold | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Green | Non Specified - Single Edge | Copper Alloy | Female | 40 | 0.156 in | 3.96 mm | 1 | Through Hole | Solder Eyelet(s) | 1 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 40 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||||||
EDAC Inc. | Gold | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Green | Non Specified - Single Edge | Copper Alloy | Female | 40 | 0.156 in | 3.96 mm | 1 | Through Hole | Wire Wrap | 1 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 40 | 4-40 Threaded Insert Top Mount Opening | ||||||||
EDAC Inc. | Gold | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Green | Non Specified - Single Edge | Copper Alloy | Female | 40 | 0.156 in | 3.96 mm | 1 | Through Hole | Wire Wrap | 1 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 40 | Flush Mount M3 Threaded Insert Top Opening | ||||||||
EDAC Inc. | Gold | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Green | Non Specified - Single Edge | Copper Alloy | Female | 40 | 0.156 in | 3.96 mm | 1 | Through Hole | Wire Wrap | 1 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 40 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | ||||||
EDAC Inc. | Gold | Polyester Thermoplastic | Dual | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | Copper Alloy | Female | 20 | 20 | 20 | 40 | 0.156 in | 3.96 mm | 2 | Through Hole | Solder | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | ||||
EDAC Inc. | Gold | Polyester Thermoplastic | 3.25 mm | 0.128 in | Dual | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | Copper Alloy | Female | 20 | 20 | 20 | 40 | 0.156 in | 3.96 mm | 2 | Through Hole | Solder Eyelet(s) | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | ||||
EDAC Inc. | Gold | Polyester Thermoplastic | 3.25 mm | 0.128 in | Single | -40 °C | 105 ░C | Green | Non Specified - Single Edge | Copper Alloy | Female | 40 | 0.156 in | 3.96 mm | 1 | Through Hole | Wire Wrap | 1 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 40 | |||||||
EDAC Inc. | Gold | Polyester Thermoplastic | Single | -40 °C | 105 ░C | Green | Non Specified - Single Edge | Copper Alloy | Female | 40 | 0.156 in | 3.96 mm | 1 | Through Hole Right Angle | Wire Wrap | 1 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 40 | 4-40 Threaded Insert Top Mount Opening | Card Guides | |||||||
EDAC Inc. | Gold | Polyester Thermoplastic | Dual | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | Copper Alloy | Female | 20 | 20 | 20 | 40 | 0.156 in | 3.96 mm | 2 | Through Hole | Solder | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
337-040 Series
40 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
