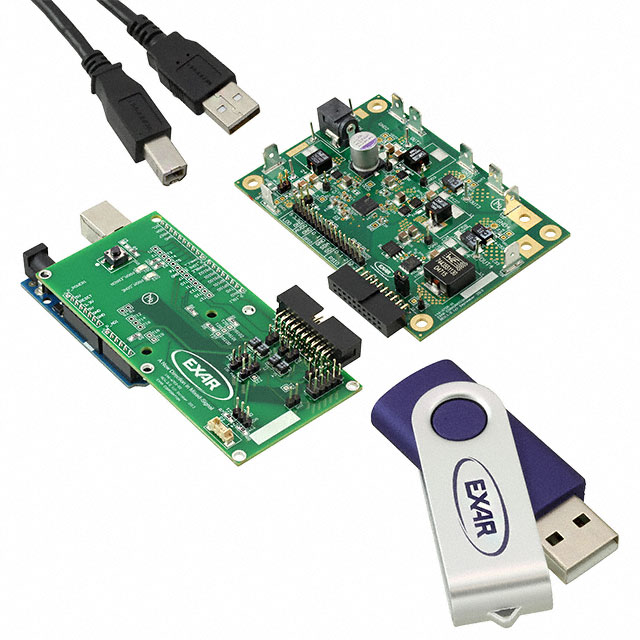

XR77128EVB-DEMO-1-KITA

MaxLinear, Inc.

DEMO KIT XR77128 BOARD SOFTWARE

Search across all available documentation for this part.

MaxLinear, Inc.

DEMO KIT XR77128 BOARD SOFTWARE

Technical Specifications

Parameters and characteristics commom to parts in this series

DEMO KIT XR77128 BOARD SOFTWARE

Part	Main Purpose	Outputs and Type	Outputs and Type	Voltage - Output	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Regulator Topology	Supplied Contents	Package / Case	Supplier Device Package	Frequency - Switching [Min]	Frequency - Switching [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Control Features	Synchronous Rectifier	Output Phases	Function	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Topology	Output Type	Mounting Type	Output Configuration	Clock Sync
MaxLinear, Inc. XR77128EVB-DEMO-1-KITA	DC/DC, Step Down with LDO	4	Non-Isolated	1 V, 1.5 V, 2.5 V, 3.3 V	3 A, 5 A, 10 A	25 V	5.5 V	Fully Populated	Buck	Board(s)
MaxLinear, Inc. XR77128ELBMTR-F											44-WFQFN Exposed Pad	44-TQFN (7x7)	105 kHz	1.23 MHz	-40 °C	125 ¯C	4	Enable		1	Step-Down	25 V	5.5 V	Buck	Transistor Driver	Surface Mount	Positive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 67.10

General part information

XR77128 - DC/DC, Step Down with LDO 4, Non-Isolated Outputs Evaluation Board

Technical documentation and resources

No documents available
