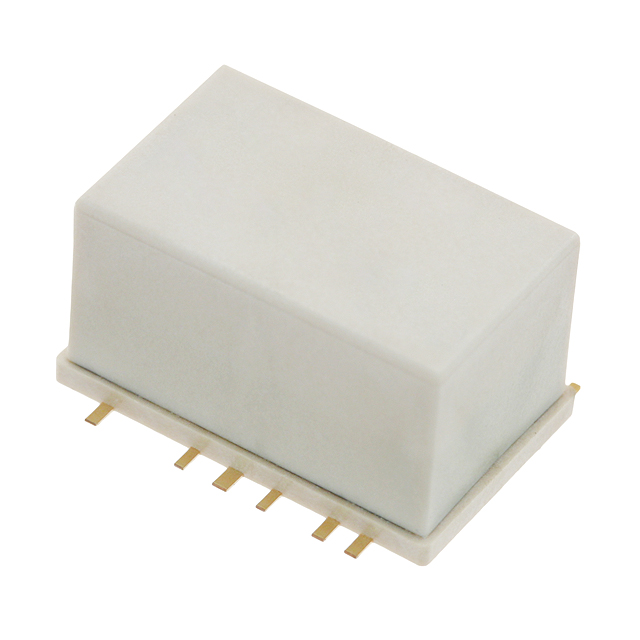

ARS134H
ActivePanasonic Electric Works
RELAY RF SPDT 500MA 4.5V
Deep-Dive with AI
Search across all available documentation for this part.
ARS134H
ActivePanasonic Electric Works
RELAY RF SPDT 500MA 4.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARS134H |
|---|---|
| Coil Current | 44.4 mA |
| Coil Power | 200 mW |
| Coil Resistance | 101 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 4.5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Gold Plating |
| Contact Rating (Current) | 0.5 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.38 VDC |
| Must Release Voltage | 0.45 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 6 ms |
| Switching Voltage | 30 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.43 | |
| 10 | $ 8.84 | |||
| 25 | $ 7.86 | |||
| 50 | $ 7.46 | |||
| 100 | $ 7.07 | |||
| 250 | $ 6.29 | |||
| 500 | $ 5.89 | |||
| 1000 | $ 5.50 | |||
Description
General part information
ARS134 Series
RELAY RF SPDT 500MA 4.5V
