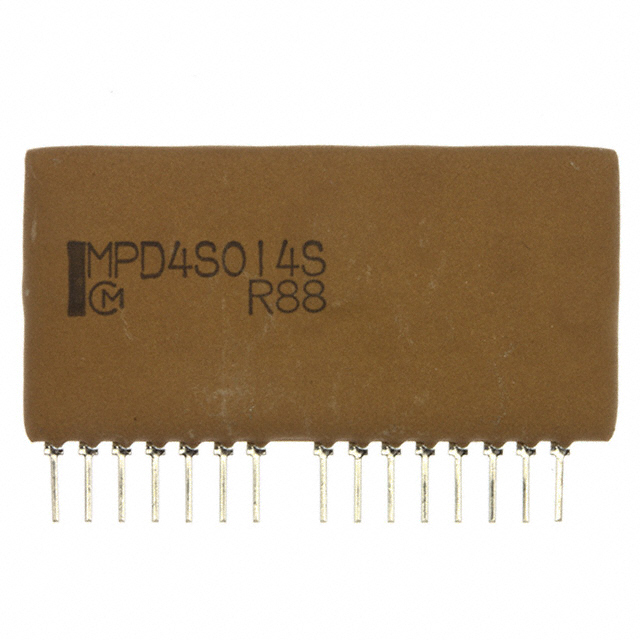

MPD4S014S

Active

Murata Power Solutions Inc.

DC DC CNVRTR 1.8V 3.3V 2.5V 6W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CNVRTR 1.8V 3.3V 2.5V 6W

Technical Specifications

Parameters and characteristics for this part

DC DC CNVRTR 1.8V 3.3V 2.5V 6W

Part	Applications	Efficiency	Mounting Type	Voltage - Output 2	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max)	Type	Voltage - Output 3	Voltage - Output 1	Voltage - Input (Min) [Min]	Package / Case	Number of Outputs	Power (Watts)
Murata Power Solutions Inc. MPD4S014S	ITE (Commercial)	75 %	Through Hole	3.3 V	13.2 V	0 °C	85 °C	1.32 "	19 mm	0.75 in	33.5 mm	6.8 mm	0.27 in	1 A, 1.3 A, 300 mA	Non-Isolated PoL Module	2.5 V	1.8 V	4.5 V	16-SIP Module, 15 Leads	3	6 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 3 Output 1.8V 3.3V 2.5V 1.3A, 1A, 300mA 4.5V - 13.2V Input

Technical documentation and resources

No documents available
