EN2P4M22PK
ActiveSwitchcraft Inc.

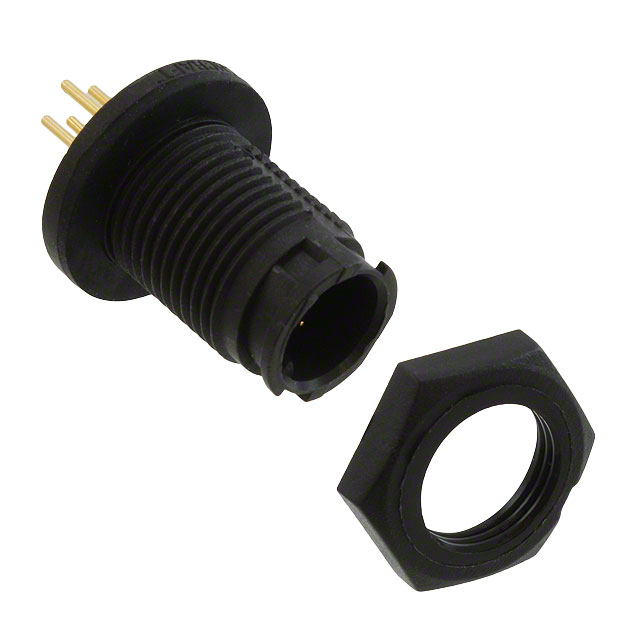

CONN RCPT MALE 4POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN2P4M22PK | EN2P4M Series |
|---|---|---|
| Applications | Marine, Communication Systems, Medical, Industrial | Marine, Communication Systems, Medical, Industrial |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 1.5 A | 1.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 125 VAC | 125 VAC |
EN2P4M Series
CONN RCPT MALE 4POS GOLD SOLDER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Color | Connector Type | Mounting Feature | Contact Material | Termination | Contact Finish - Mating | Ingress Protection | Current Rating (Amps) | Fastening Type | Mounting Type | Applications | Number of Positions | Material Flammability Rating | Insert Material | Shielding | Orientation | Voltage Rating | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN2P4M22P | 85 °C | -40 °C | Black | Male Pins, Receptacle | Bulkhead - Front Side Nut | Copper Alloy | Solder | Gold | IP66, IP67, IP68 | 1.5 A | Bayonet Lock | Panel Mount, Through Hole | Communication Systems, Industrial, Marine, Medical | 4 | UL94 V-0 | Elastomer | Unshielded | Keyed | 125 VAC | Plastic |
Switchcraft Inc. EN2P4M22PK | 85 °C | -40 °C | Black | Male Pins, Receptacle | Bulkhead - Front Side Nut | Copper Alloy | Solder | Gold | IP66, IP67, IP68 | 1.5 A | Bayonet Lock | Panel Mount, Through Hole | Communication Systems, Industrial, Marine, Medical | 4 | UL94 V-0 | Elastomer | Unshielded | Keyed | 125 VAC | Plastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.95 | |
| 10 | $ 7.19 | |||
Description
General part information
EN2P4M Series
4 Position Circular Connector Receptacle, Male Pins Solder
