EN2P4M22P

Active

Switchcraft Inc.

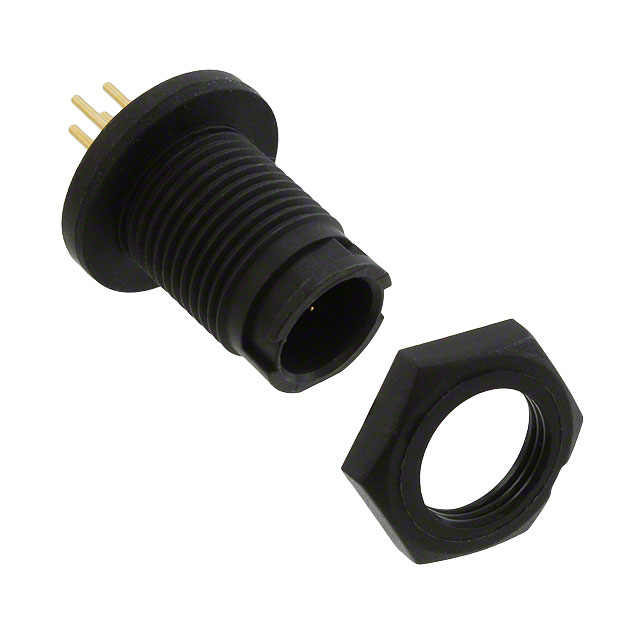

CONN RCPT MALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 4POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EN2P4M22P	EN2P4M Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	1.5 A	1.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage Rating	125 VAC	125 VAC

CONN RCPT MALE 4POS GOLD SOLDER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Color	Connector Type	Mounting Feature	Contact Material	Termination	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Fastening Type	Mounting Type	Applications	Number of Positions	Material Flammability Rating	Insert Material	Shielding	Orientation	Voltage Rating	Primary Material
Switchcraft Inc. EN2P4M22P	85 °C	-40 °C	Black	Male Pins, Receptacle	Bulkhead - Front Side Nut	Copper Alloy	Solder	Gold	IP66, IP67, IP68	1.5 A	Bayonet Lock	Panel Mount, Through Hole	Communication Systems, Industrial, Marine, Medical	4	UL94 V-0	Elastomer	Unshielded	Keyed	125 VAC	Plastic
Switchcraft Inc. EN2P4M22PK	85 °C	-40 °C	Black	Male Pins, Receptacle	Bulkhead - Front Side Nut	Copper Alloy	Solder	Gold	IP66, IP67, IP68	1.5 A	Bayonet Lock	Panel Mount, Through Hole	Communication Systems, Industrial, Marine, Medical	4	UL94 V-0	Elastomer	Unshielded	Keyed	125 VAC	Plastic
