LTM4686IV#PBF
ActiveULTRATHIN DUAL 10A OR SINGLE 20A ΜMODULE REGULATOR WITH DIGITAL POWER SYSTEM MANAGEMENT
Deep-Dive with AI
Search across all available documentation for this part.
LTM4686IV#PBF
ActiveULTRATHIN DUAL 10A OR SINGLE 20A ΜMODULE REGULATOR WITH DIGITAL POWER SYSTEM MANAGEMENT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM4686IV#PBF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 10 A |
| Current - Output (Max) | 10 A |
| Features | Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

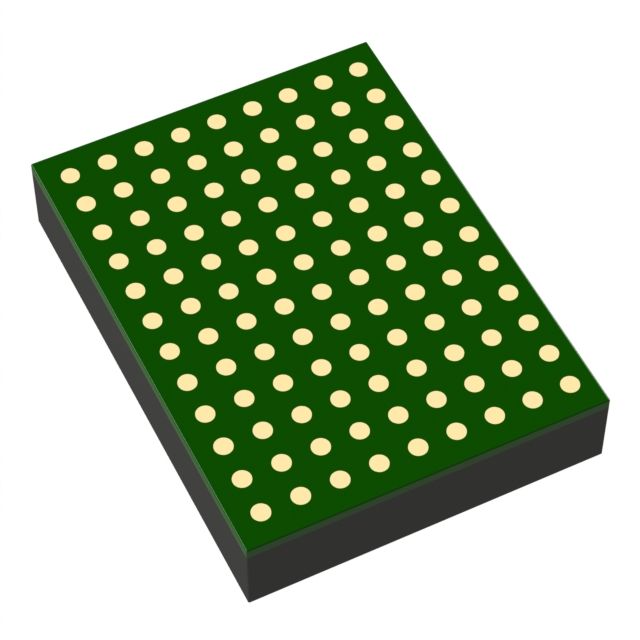

| Package / Case | 108-LGA Module |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [y] | 11.9 mm |
| Size / Dimension [y] | 0.47 " |
| Size / Dimension [z] | 1.82 mm |
| Size / Dimension [z] | 0.07 " |
| Supplier Device Package | 108-LGA (16x11.9) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 17 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 3.6 V |
| Voltage - Output 1 [Min] | 0.5 V |
| Voltage - Output 2 [Max] | 3.6 V |
| Voltage - Output 2 [Min] | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LTM4686 Series
The LTM4686 is a dual 10A (12A Peak) or single 20A (24A Peak) step-down µModule®(micromodule) DC/DC regulator with 39ms turn-on time. It features remote configurability and telemetry-monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol . The LTM4686 is comprised of fast analog control loops, precision mixed-signal circuitry, EEPROM, power MOSFETs, inductors and supporting components.The LTM4686’s 2-wire serial interface enables voltage margining and sequencing, and telemetry readback of currents, voltages, power, temperature, uptime and peak values. Pin-strap resistors configure start-up settings. The LTpowerPlay™GUI, DC1613 USB-to-PMBus converter, DC2086 programming adapter and demo kits are available. Applications running from 5VINor supplying 5VAUXto SVINshould use LTM4686-1. Otherwise, use LTM4686.Pb-free and RoHS compliant, the LTM4686 is available in a 16mm × 11.9mm × 1.82mm LGA package.ApplicationsSystem Optimization in Prototype and Production
