XZFAVG10A2

Active

SunLED

GREEN 2BIT 75MW COMMON ANODE 0.4 SMD-32P LED SEGMENT DISPLAYS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XZFAVG10A2

Active

SunLED

GREEN 2BIT 75MW COMMON ANODE 0.4 SMD-32P LED SEGMENT DISPLAYS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XZFAVG10A2

Color	Green
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	10.16 mm
Digit/Alpha Size [custom]	0.4 in
Display Type	14-Segment, Alphanumeric
Millicandela Rating	3 mcd
Number of Characters	2
Package / Case	32-SMD, No Lead
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.148 "
Size / Dimension [x]	3.75 mm
Size / Dimension [y]	0.74 "
Size / Dimension [y]	18.8 mm
Size / Dimension [z]	0.748 in
Size / Dimension [z]	19 mm
Voltage - Forward (Vf) (Typ)	2 V

XZFAVG10 Series

Part	Number of Characters [custom]	Millicandela Rating	Color	Current - Test	Common Pin	Power Dissipation (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Digit/Alpha Size	Digit/Alpha Size [custom]	Package / Case	Display Type	Voltage - Forward (Vf) (Typ)	Number of Characters	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
SunLED XZFAVG10C	1	3 mcd	Green	10 mA	Common Cathode	75 mw	19 mm	0.148 in	0.366 in	9.3 mm	3.75 mm	0.748 in	10.16 mm	0.4 in	16-SMD No Lead	14-Segment Alphanumeric	2 V
SunLED XZFAVG10A2		3 mcd	Green	10 mA	Common Anode	75 mw	0.148 "			0.74 "	0.748 in		10.16 mm	0.4 in	32-SMD No Lead	14-Segment Alphanumeric	2 V	2	19 mm	18.8 mm	3.75 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 4.28
		500	$ 3.61
		750	$ 3.48
		1250	$ 3.31
		2500	$ 3.17
LCSC	Piece	1	$ 8.40
		250	$ 3.35
		500	$ 3.24
		1000	$ 3.18

Description

General part information

XZFAVG10 Series

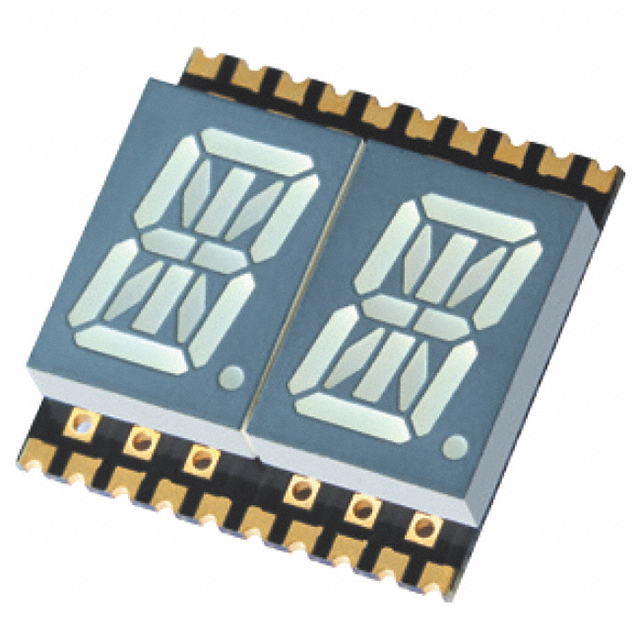

Display Modules - LED Character and Numeric Green 14-Segment, Alphanumeric 2 Character Common Anode 2V 10mA 0.748" H x 0.740" W x 0.148" D (19.00mm x 18.80mm x 3.75mm) 32-SMD, No Lead
