Specification	34827

Color	Black Stripe, Yellow
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination, Heavy Duty
Insulation	Insulated
Insulation Diameter (Max)	0.2 in
Insulation Diameter (Min)	0.105 in
Length - Overall	1.594 in
Material - Insulation	PVC, Poly-Vinyl Chloride
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.5 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.048 in
Width - Outer Edges	0.75 in
Wire Gauge (AWG) (Max)	16 AWG
Wire Gauge (AWG) (Min)	14 AWG

3482 Series

Part	Material - Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)	Length - Overall	Mounting Type	Color	Features	Stud/Tab Size	Insulation	Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Terminal Type	Contact Material	Thickness	Width - Outer Edges	Contact Finish

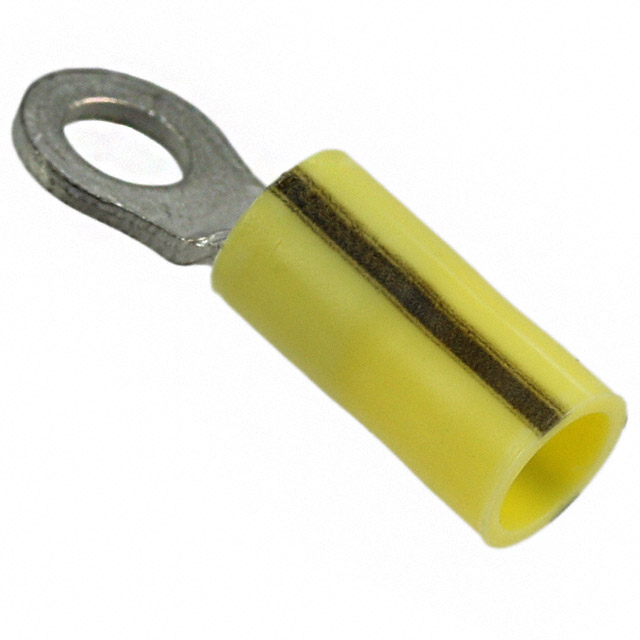

TE Connectivity AMP Connectors 34823	Poly-Vinyl Chloride PVC	0.105 in	0.2 in	1.046 in	Free Hanging (In-Line)	Black Stripe Yellow	Heavy Duty Serrated Termination	10 Stud	Insulated	Crimp	16 AWG	14 AWG	Circular	Copper	0.048 in	0.343 in	Tin

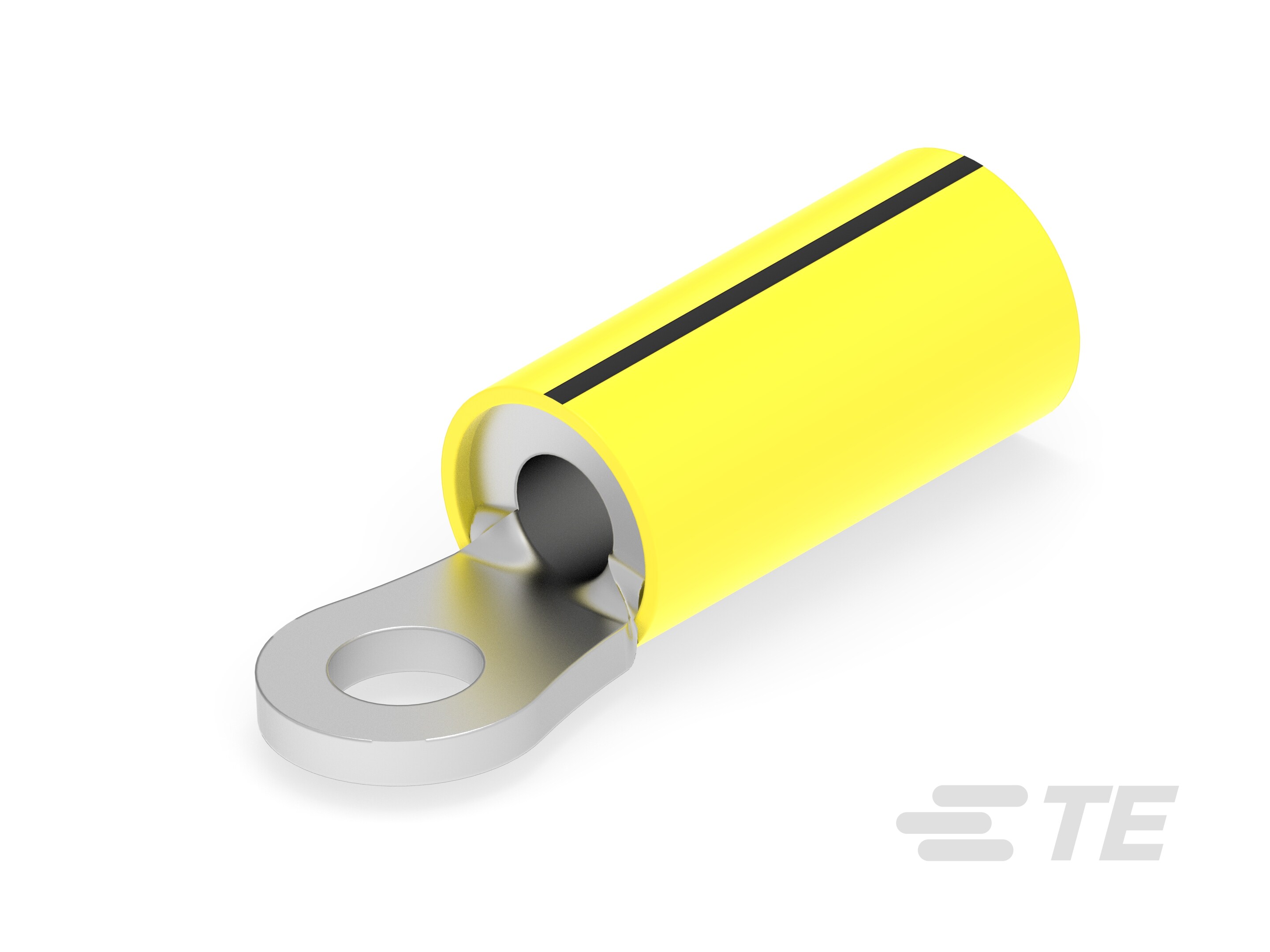

TE Connectivity AMP Connectors 34821	Poly-Vinyl Chloride PVC	0.105 in	0.2 in	0.953 in	Free Hanging (In-Line)	Black Stripe Yellow	Heavy Duty Serrated Termination	6 Stud	Insulated	Crimp	16 AWG	14 AWG	Circular	Copper	0.048 in	0.281 in	Tin
TE Connectivity AMP Connectors 34827	Poly-Vinyl Chloride PVC	0.105 in	0.2 in	1.594 in	Free Hanging (In-Line)	Black Stripe Yellow	Heavy Duty Serrated Termination	0.5 Stud	Insulated	Crimp	16 AWG	14 AWG	Circular	Copper	0.048 in	0.75 in	Tin
