892-036-523-207

Active

EDAC Inc.

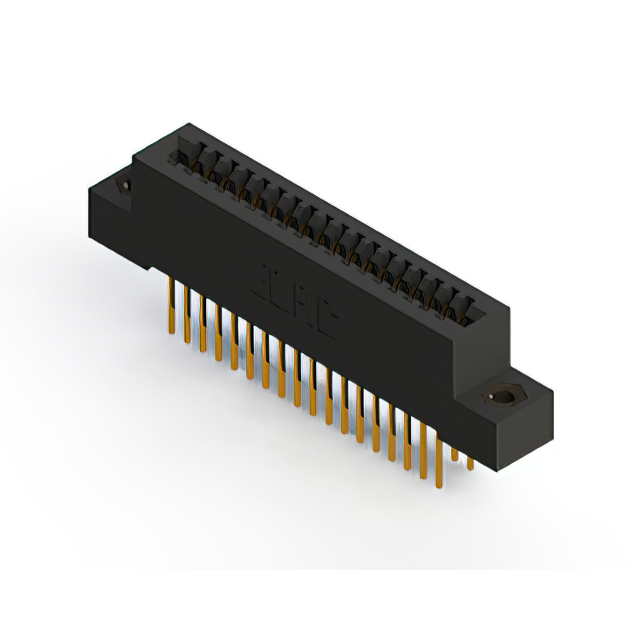

CARD EDGE CONNECTOR, 36 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, M3, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-036-523-207

Active

EDAC Inc.

CARD EDGE CONNECTOR, 36 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, M3, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-036-523-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	36
Number of Positions/Bay/Row [custom]	18
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

892-036 Series

...

Part	Termination Rows	Pitch [x]	Pitch [x]	Card Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Read Out	Material - Insulation	Gender	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Finish	Mounting Type	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Number of Positions
EDAC Inc. 892-036-523-104	1	2.54 mm	0.1 in	Non Specified - Single Edge	Solder	125 °C	-40 °C	Copper Alloy	Single	Polyphenylene Sulfide (PPS)	Female	36	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	1	Gold	Through Hole	Cantilever	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Black	36
EDAC Inc. 892-036-523-207	2	2.54 mm	0.1 in	Non Specified - Dual Edge	Solder	125 °C	-40 °C	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	Female	18	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	2	Gold	Through Hole	Cantilever		Flush Mount M3 Threaded Insert Top Opening		Black	36
EDAC Inc. 892-036-523-107	1	2.54 mm	0.1 in	Non Specified - Single Edge	Solder	125 °C	-40 °C	Copper Alloy	Single	Polyphenylene Sulfide (PPS)	Female	36	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	1	Gold	Through Hole	Cantilever		Flush Mount M3 Threaded Insert Top Opening		Black	36
EDAC Inc. 892-036-523-204	2	2.54 mm	0.1 in	Non Specified - Dual Edge	Solder	125 °C	-40 °C	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	Female	18	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	2	Gold	Through Hole	Cantilever	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Black	36
EDAC Inc. 892-036-541-207	2	2.54 mm	0.1 in	Non Specified - Dual Edge	Wire Wrap	125 °C	-40 °C	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	Female	18	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	2	Gold	Through Hole	Cantilever		Flush Mount M3 Threaded Insert Top Opening		Black	36
EDAC Inc. 892-036-542-207	2	2.54 mm	0.1 in	Non Specified - Dual Edge	Wire Wrap	125 °C	-40 °C	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	Female	18	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	2	Gold	Through Hole	Cantilever		Flush Mount M3 Threaded Insert Top Opening		Black	36
EDAC Inc. 892-036-500-103	1	2.54 mm	0.1 in	Non Specified - Single Edge	Solder Eyelet(s)	125 °C	-40 °C	Copper Alloy	Single	Polyphenylene Sulfide (PPS)	Female	36	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	1	Gold	Through Hole	Cantilever	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Black	36
EDAC Inc. 892-036-540-207	2	2.54 mm	0.1 in	Non Specified - Dual Edge	Wire Wrap	125 °C	-40 °C	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	Female	18	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	2	Gold	Through Hole	Cantilever		Flush Mount M3 Threaded Insert Top Opening		Black	36
EDAC Inc. 892-036-558-201	2	2.54 mm	0.1 in	Non Specified - Dual Edge	Solder	125 °C	-40 °C	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	Female	18	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	2	Gold	Through Hole Right Angle	Cantilever				Black	36
EDAC Inc. 892-036-559-203	2	2.54 mm	0.1 in	Non Specified - Dual Edge	Solder	125 °C	-40 °C	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	Female	18	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	2	Gold	Through Hole Right Angle	Cantilever	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Black	36

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 69.99
Newark	Each	1	$ 84.00
		100	$ 63.68
		250	$ 55.09
		500	$ 47.73
		1000	$ 34.38

Description

General part information

892-036 Series

36 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
