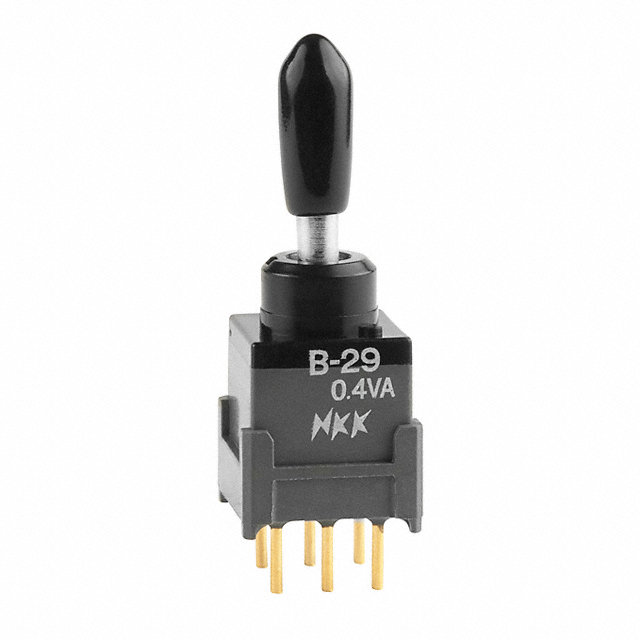

B29AP-GA

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Circuit	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Features	Voltage Rating - AC	Actuator Type	Electrical Life	Switch Function	Bushing Thread	Actuator Length [x]	Mounting Type	Termination Style	Actuator Material
NKK Switches B29AP-GA	0.4 VA	DPDT	28 V	-30 ░C	85 °C	Non-Illuminated	Black Cap	28 V	Standard Round with Cap	50000 Cycles	On-Off-Mom	Unthreaded	10 mm	Through Hole	PC Pin	Brass Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Through Hole
