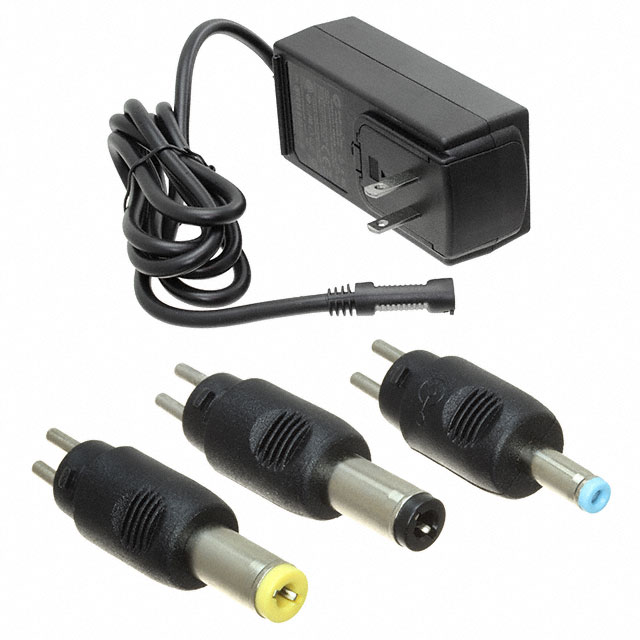

Specification	RR9KA4500T00NAIMR6B

Applications	Medical, ITE (Commercial), Household Appliances
Approval Agency	VCCI, UKRSepro, EAC, S-Mark, ETL, CCC, cETLus, FCC, UL, CE, RCM, CB, LPS, PSE
Cord Length	47.2 in
Current - Output (Max)	4.5 A
Efficiency	Level VI
Form	Wall Mount (Class II), Desktop
Input Connector	IEC 320-C8, Multi-Blade (Single Blade Included)
Input Type	Multi-Blade (Single Blade Included), Cord (Sold Separately)
No Load Power Consumption (Max)	75 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	-20 °C
Output Connector	2.1mm x 5.5mm, (1.3mm x 3.5mm, Barrel Plug Kit, 2.5mm x 5.5mm)
Power (Watts)	23 W
Region Utilized	International
Size / Dimension Height	1.5 in
Size / Dimension Length	4 in
Size / Dimension Width	1.83 in
Standard Number	60950-1, 1310, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	5 VDC

RR9KA4500 Series

Part	Applications	Input Type	Approval Agency	Input Connector	Form	Cord Length	Power (Watts)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Output Connector	Efficiency	Current - Output (Max)	No Load Power Consumption (Max)	Voltage - Output	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Region Utilized	Standard Number	Polarization	Output Connector I.D.	Output Connector Length	Output Connector O.D.
GlobTek, Inc. RR9KA4500T00NAIMR6B	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately) Multi-Blade (Single Blade Included)	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro UL VCCI	IEC 320-C8 Multi-Blade (Single Blade Included)	Desktop Wall Mount (Class II)	47.2 in	23 W	90 V	264 V	(1.3mm x 3.5mm 2.1mm x 5.5mm 2.5mm x 5.5mm) Barrel Plug Kit	Level VI	4.5 A	75 mW	5 VDC	1.83 in	1.5 in	4 in	40 °C	-20 °C	International	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1
GlobTek, Inc. RR9KA4500CCP-IMR6B	Household Appliances ITE (Commercial) Medical	Cord Multi-Blade (Sold Separately)	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro UL VCCI	IEC 320-C8 Multi-Blade (Sold Separately)	Desktop Wall Mount (Class II)	47.2 in	23 W	90 V	264 V	Barrel Plug	Level VI	4.5 A	75 mW	5 VDC	1.83 in	1.5 in	4 in	40 °C	-20 °C	International	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Positive Center	2.1 mm	11 mm	5.5 mm
