820-AG11D

Obsolete

TE Connectivity AMP Connectors

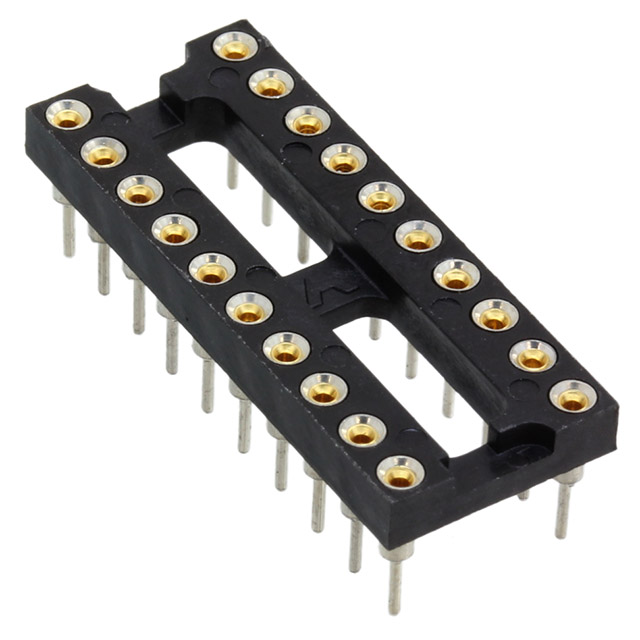

CONN IC DIP SOCKET 20POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN IC DIP SOCKET 20POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	820-AG11D

Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Material - Mating	Copper Alloy
Contact Material - Post [custom]	Copper Alloy
Contact Resistance	10 mOhm
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	20
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

CONN IC DIP SOCKET 20POS GOLD

Part	Contact Material - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Type	Type	Type	Contact Resistance	Number of Positions or Pins (Grid)	Termination	Pitch - Post	Pitch - Post	Material Flammability Rating	Contact Finish - Mating	Contact Material - Post [custom]	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Housing Material	Contact Finish - Post	Mounting Type	Termination Post Length	Termination Post Length	Features
TE Connectivity AMP Connectors 820-AG11D	Copper Alloy	105 ░C	-55 °C	0.3 "	7.62 mm	DIP	10 mOhm	20	Solder	2.54 mm	0.1 in	UL94 V-0	Gold	Copper Alloy	0.1 in	2.54 mm	3 A	Polyester	Tin-Lead	Through Hole	3.18 mm	0.125 in	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 (2 x 10) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
