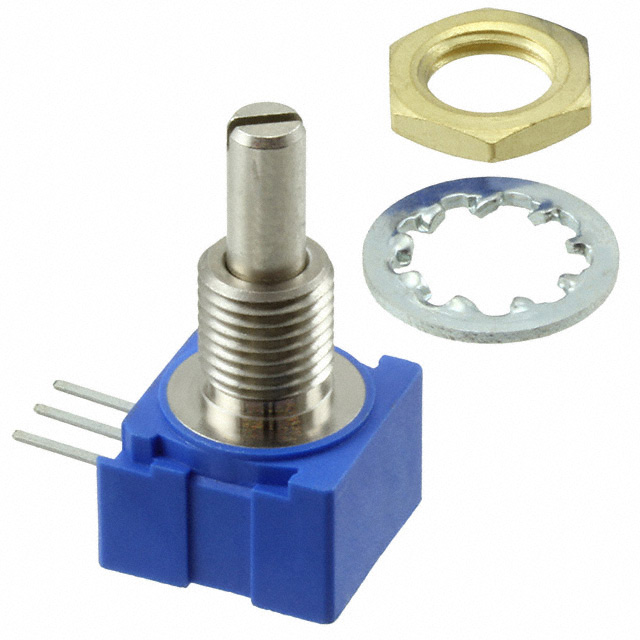

51UAD-T16-D15L
ActiveBourns Inc.
POT 10K OHM 1/4W PLASTIC LOG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
51UAD-T16-D15L
ActiveBourns Inc.
POT 10K OHM 1/4W PLASTIC LOG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 51UAD-T16-D15L |
|---|---|
| Actuator Diameter [diameter] | 0.157 in |
| Actuator Diameter [diameter] | 3.99 mm |
| Actuator Length [z] | 0.63 in |
| Actuator Length [z] | 16 mm |
| Actuator Type | Slotted |
| Adjustment Type | Side Adjustment |
| Built in Switch | False |
| Bushing Thread | 0.75 |
| Bushing Thread | M7 |
| Features | Sealed |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance (Ohms) | 10k |
| Resistive Material | Conductive Plastic |
| Rotation | 290 ° |
| Size - Body [x] | 0.521 in |
| Size - Body [x] | 13.25 mm |
| Size - Body [y] | 12.5 mm |
| Size - Body [y] | 0.492 in |
| Taper | Logarithmic |
| Temperature Coefficient | 1000 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.85 | |
| 10 | $ 11.43 | |||
| 45 | $ 9.31 | |||
| 90 | $ 8.47 | |||
| 270 | $ 6.77 | |||
| 540 | $ 6.56 | |||
| 1035 | $ 6.14 | |||
Description
General part information
51UAD Series
10k Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.25W, 1/4W PC Pins
