MAX11643EEG+T

Active

Analog Devices Inc./Maxim Integrated

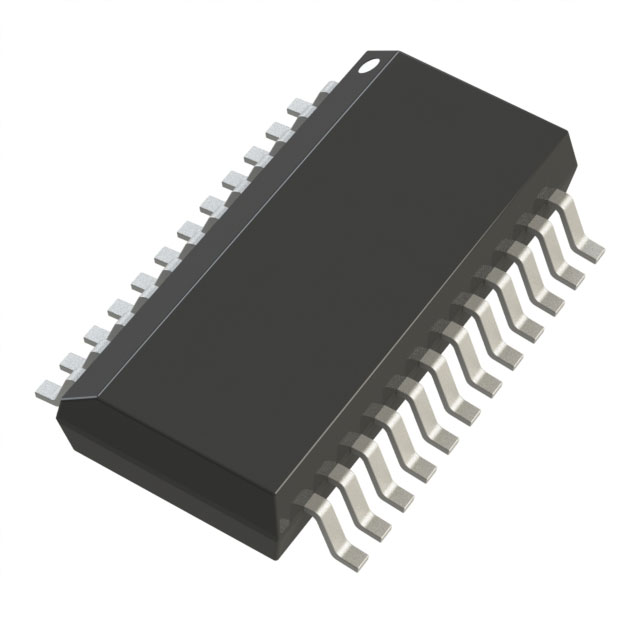

IC ADC 8BIT SAR 24QSOP

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC ADC 8BIT SAR 24QSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

IC ADC 8BIT SAR 24QSOP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Architecture	Reference Type	Package / Case	Package / Case [custom]	Configuration	Mounting Type	Sampling Rate (Per Second)	Number of Bits	Ratio - S/H:ADC	Number of A/D Converters	Data Interface	Number of Inputs	Supplier Device Package	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Input Type
Analog Devices Inc./Maxim Integrated MAX11643EEG+T	85 °C	-40 °C	3.6 V	2.7 V	SAR	External, Internal	24-SSOP	0.154 ", 3.9 mm	S/H-ADC	Surface Mount	300 kHz	8	1:1	1	SPI	16	24-QSOP	2.7 V	3.6 V	Single Ended
Analog Devices Inc./Maxim Integrated MAX11643EEG+	85 °C	-40 °C	3.6 V	2.7 V	SAR	External, Internal	24-SSOP	0.154 ", 3.9 mm	S/H-ADC	Surface Mount	300 kHz	8	1:1	1	SPI	16	24-QSOP	2.7 V	3.6 V	Single Ended

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 3.77

General part information

8 Bit Analog to Digital Converter 16 Input 1 SAR 24-QSOP
