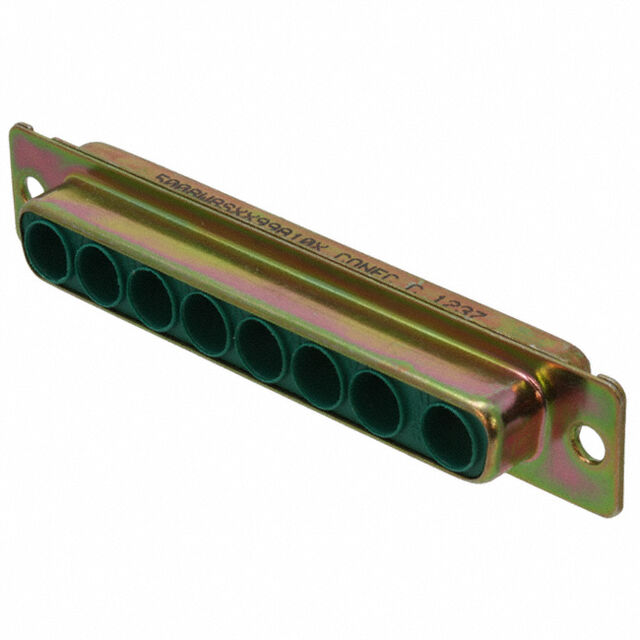

5008W8SXX99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING RCPT 8POS

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB HOUSING RCPT 8POS

Technical Specifications

Parameters and characteristics for this part

Specification	5008W8SXX99A10X

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Receptacle for Female Contacts
Contact Type	Coax, Power
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	320 µin
Shell Finish Thickness	8.13 µm
Shell Material, Finish	Steel, Yellow Chromate Plated
Shell Size, Connector Layout	8W8
Shell Size, Connector Layout	4

Part	Connector Type	Shell Material, Finish	Shell Finish Thickness	Shell Finish Thickness	Connector Style	Mounting Type	Note	Flange Feature	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout	Shell Size, Connector Layout	Dielectric Material	Contact Type	Color	Number of Rows
Amphenol CONEC 5008W8SXX99A10X	Receptacle for Female Contacts	Steel Yellow Chromate Plated	320 µin	8.13 µm	Combo D-Sub	Free Hanging (In-Line)	Contacts Not Included	Housing/Shell (Unthreaded)	8	-55 °C	125 °C	8W8	4	Polybutylene Terephthalate (PBT) Glass Filled	Coax Power	Green	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Receptacle for Female Contacts Housing D-Sub, Combo Connector 8 (Coax or Power) Position
