Q-0J02I0005036i

Active

Amphenol Custom Cable

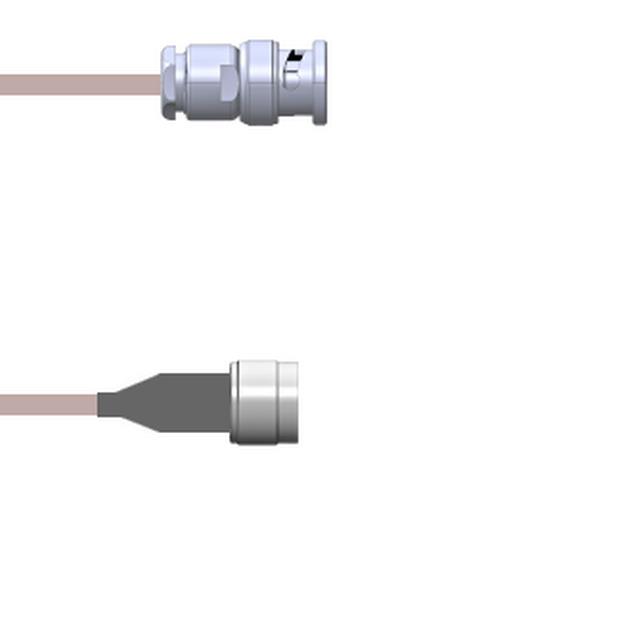

CBL ASSY BNC-NTYPE PLUG-PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J02I0005036i

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE PLUG-PLUG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J02I0005036i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0J02I0 Series

Part	2nd Contact Gender	2nd Connector	Features	1st Connector Mounting Type	Style	Length	Length	Length	1st Contact Gender	Color	1st Connector	Frequency - Max [Max]	Overall Impedance	Cable Type	2nd Connector Mounting Type
Amphenol Custom Cable Q-0J02I00052.5M	Male	N-Type Plug	Shielded	Free Hanging (In-Line)	BNC to N-Type	8.2 '	98.4 in	2.5 m	Male	Copper	BNC Plug	4 GHz	50 Ohms	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J02I0003001M	Male	N-Type Plug	Shielded	Free Hanging (In-Line)	BNC to N-Type	3.3 ft	39.4 in	1 m	Male	Black	BNC Plug	4 GHz	50 Ohms	RG-174	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J02I0005060i	Male	N-Type Plug	Shielded	Free Hanging (In-Line)	BNC to N-Type	5 ft	5 '	1.5 m	Male	Copper	BNC Plug	4 GHz	50 Ohms	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J02I0005048i	Male	N-Type Plug	Shielded	Free Hanging (In-Line)	BNC to N-Type	4 ft	48 in	1200 mm	Male	Copper	BNC Plug	4 GHz	50 Ohms	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J02I0005036i	Male	N-Type Plug	Shielded	Free Hanging (In-Line)	BNC to N-Type		36 in	91.44 cm	Male	Copper	BNC Plug	4 GHz	50 Ohms	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J02I0005108i	Male	N-Type Plug	Shielded	Free Hanging (In-Line)	BNC to N-Type	9 ft	108 in	2.7 m	Male	Copper	BNC Plug	4 GHz	50 Ohms	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J02I0003048i	Male	N-Type Plug	Shielded	Free Hanging (In-Line)	BNC to N-Type	4 ft	48 in	1200 mm	Male	Black	BNC Plug	4 GHz	50 Ohms	RG-174	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J02I0005072i	Male	N-Type Plug	Shielded	Free Hanging (In-Line)	BNC to N-Type	6 ft	72 in	1.8 m	Male	Copper	BNC Plug	4 GHz	50 Ohms	RG-316	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 114.50
		25	$ 112.27
		50	$ 110.04
		100	$ 107.80
		250	$ 105.57

Description

General part information

Q-0J02I0 Series

Cable Assembly Coaxial BNC to N-Type RG-316 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
