31-320-RFX

Active

Amphenol RF

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG58, RG141, BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

31-320-RFX

Active

Amphenol RF

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG58, RG141, BRASS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	31-320-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	500 V

31-320 Series

Part	Contact Termination	Body Material	Center Contact Plating	Cable Group	Center Contact Material	Shield Termination	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Mating Cycles	Connector Style	Connector Type	Fastening Type	Frequency - Max [Max]	Number of Ports	Housing Color	Includes	Dielectric Material	Mounting Type	Impedance	Voltage Rating
Amphenol RF 31-320	Crimp Solder	Brass	Gold	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Brass	Crimp	Nickel	-65 ░C	165 °C	0.2 dB	500	BNC	Male Pin Plug	Bayonet Lock	4 GHz	1	Silver	1 Connector 1 Contact 1 Ferrule	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	50 Ohms	500 V
Amphenol RF 31-320-RFX	Crimp Solder	Brass	Gold	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Brass	Crimp	Nickel	-40 °C	85 °C	0.2 dB	500	BNC	Male Pin Plug	Bayonet Lock	4 GHz	1	Silver	1 Connector 1 Contact 1 Ferrule	Polyoxymethylene (POM) Acetal	Free Hanging (In-Line)	50 Ohms	500 V
Amphenol RF 31-320-1006	Crimp Solder	Brass	Gold	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Brass	Crimp	Nickel	-65 ░C	165 °C	0.2 dB	500	BNC	Male Pin Plug	Bayonet Lock	4 GHz	1	Silver	1 Connector 1 Contact 1 Ferrule	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	50 Ohms	500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.99
		10	$ 2.72
		25	$ 2.57
		50	$ 2.51
		100	$ 2.39
		250	$ 2.09
		500	$ 2.03
		1000	$ 1.73
		2500	$ 1.62
Newark	Each	1	$ 3.90
		10	$ 3.21
		25	$ 3.15
		50	$ 3.09
		100	$ 3.03
		250	$ 3.02
		500	$ 2.15

Description

General part information

31-320 Series

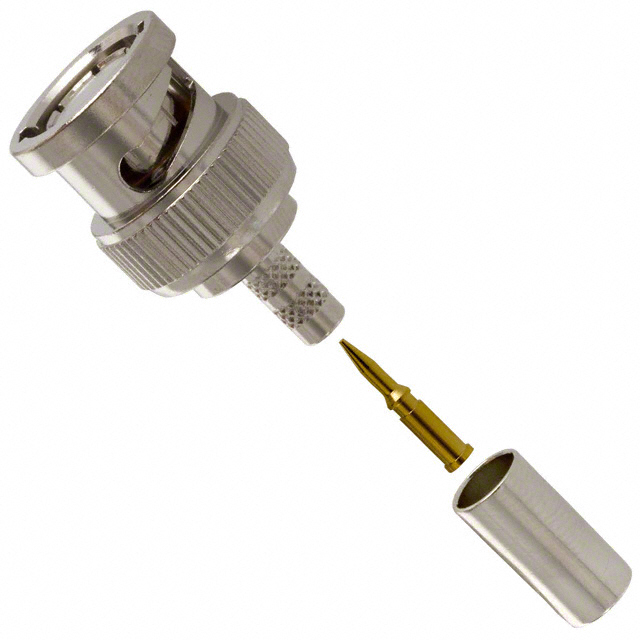

The 31-320-RFX is a BNC straight Crimp Plug for RG-58 cable. This plug has bayonet coupling mechanism, straight orientation, brass body/contact and standard polarity.
