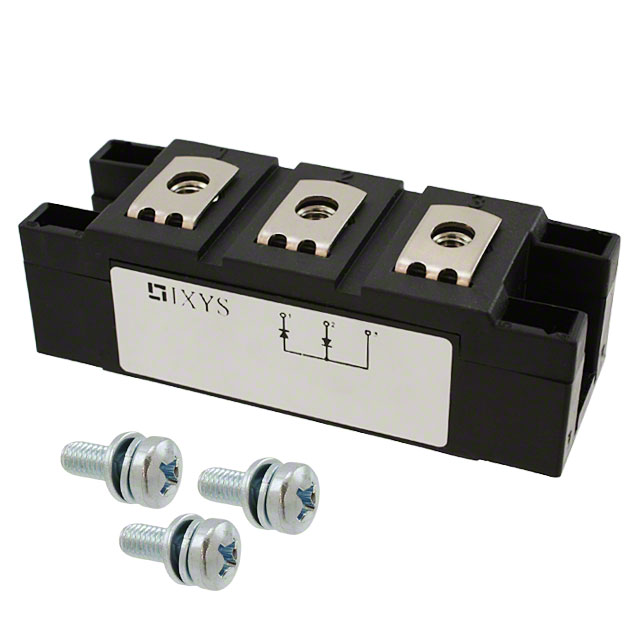

MEK300-06DA

Active

IXYS

DIODE MODULE GP 600V 304A Y4-M6

Search across all available documentation for this part.

Active

IXYS

DIODE MODULE GP 600V 304A Y4-M6

Technical Specifications

Parameters and characteristics for this part

Specification	MEK300-06DA

Current - Average Rectified (Io) (per Diode)	304 A
Current - Reverse Leakage @ Vr	12 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Y4-M6
Reverse Recovery Time (trr)	300 ns
Speed	200 mA, 500 ns
Supplier Device Package	Y4-M6
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.36 V

Part	Diode Configuration	Package / Case	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io) (per Diode)	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Speed	Supplier Device Package	Technology	Reverse Recovery Time (trr)
IXYS MEK300-06DA	1 Pair Common Cathode	Y4-M6	12 mA	150 °C	-40 °C	1.36 V	304 A	600 V	Chassis Mount	200 mA 500 ns	Y4-M6	Standard	300 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 600 V 304A Chassis Mount Y4-M6
