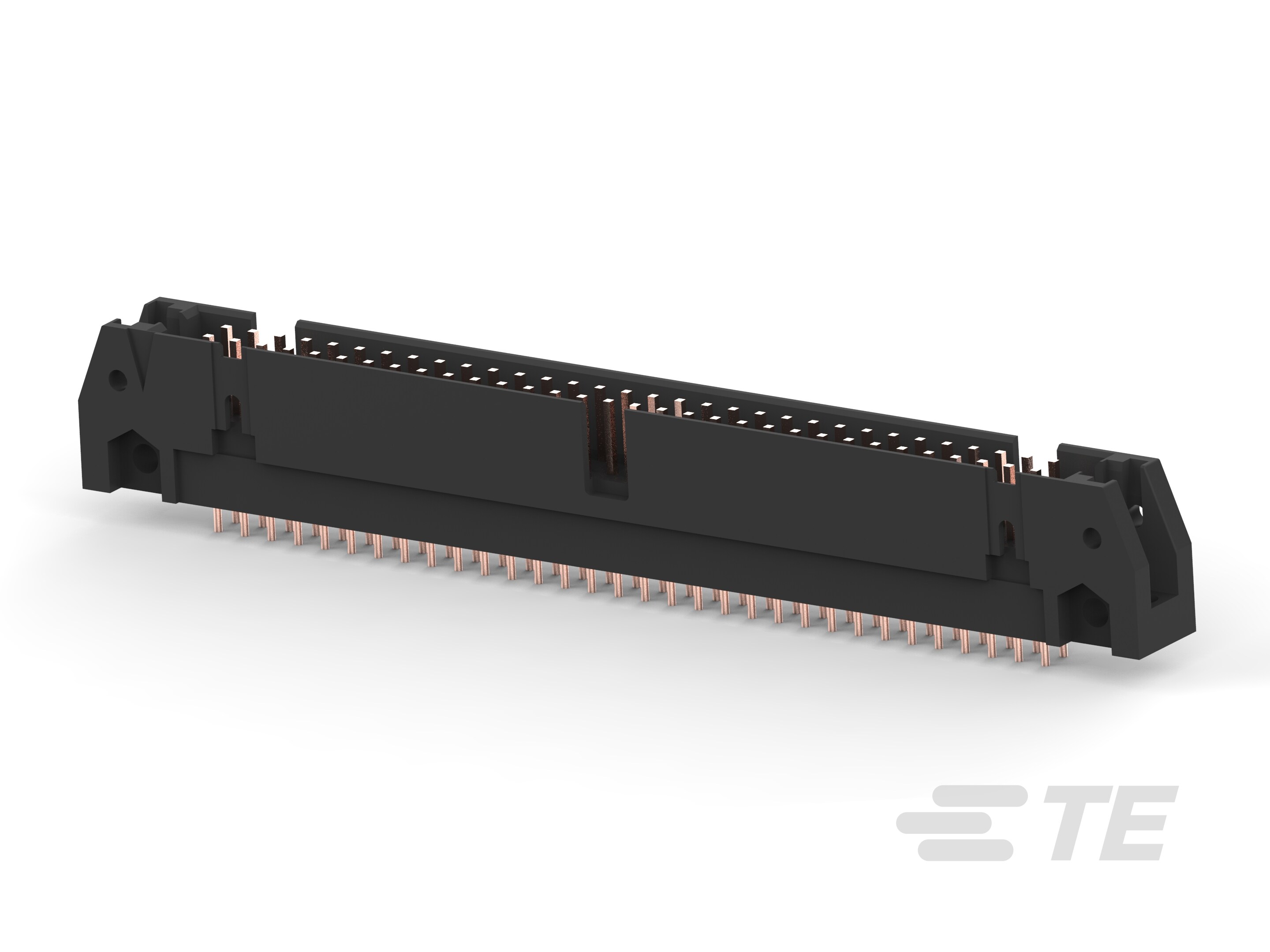

1-102153-2

Active

TE Connectivity Raychem Cable Protection

064 UNIV HDR SP 4S 15DP STD ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-102153-2

Active

TE Connectivity Raychem Cable Protection

064 UNIV HDR SP 4S 15DP STD ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-102153-2

Connector Type	Header
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Features	Mounting Flange
Insulation Color	Black
Insulation Height	0.549 in
Insulation Height	13.94 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	16.23 mm
Overall Contact Length	0.639 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

102153 Series

Part	Contact Type	Style	Contact Length - Post [x]	Contact Length - Post	Contact Shape	Termination	Connector Type	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Insulation Color	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Material Flammability Rating	Shrouding	Features	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating [x]
TE Connectivity Raychem Cable Protection 102153-7	Male Pin	Board to Cable/Wire	0.11 in	2.79 mm	Square	Solder	Header	All	Through Hole	15 µin	0.38 µm	2.54 µm	100 µin	Push-Pull	Black	30	105 ░C	-55 °C	2	UL94 V-0	Shrouded - 4 Wall	Mounting Flange	0.549 in	13.94 mm	2.54 mm	0.1 in	Tin-Lead	1 A	0.1 in	2.54 mm	16.23 mm	0.639 in	Gold or Gold-Palladium	6.1 mm	0.24 in
TE Connectivity Raychem Cable Protection 102153-1	Male Pin	Board to Cable/Wire	0.11 in	2.79 mm	Square	Solder	Header	All	Through Hole	15 µin	0.38 µm	2.54 µm	100 µin	Push-Pull	Black	10	105 ░C	-55 °C	2	UL94 V-0	Shrouded - 4 Wall	Mounting Flange	0.549 in	13.94 mm	2.54 mm	0.1 in	Tin-Lead	1 A	0.1 in	2.54 mm	16.23 mm	0.639 in	Gold or Gold-Palladium	6.1 mm	0.24 in
TE Connectivity Raychem Cable Protection 1-102153-1	Male Pin	Board to Cable/Wire	0.11 in	2.79 mm	Square	Solder	Header	All	Through Hole	15 µin	0.38 µm	2.54 µm	100 µin	Push-Pull	Black	60	105 ░C	-55 °C	2	UL94 V-0	Shrouded - 4 Wall	Mounting Flange	0.549 in	13.94 mm	2.54 mm	0.1 in	Tin-Lead	1 A	0.1 in	2.54 mm	16.23 mm	0.639 in	Gold or Gold-Palladium	6.1 mm	0.24 in
TE Connectivity Raychem Cable Protection 1-102153-2	Male Pin	Board to Cable/Wire	0.11 in	2.79 mm	Square	Solder	Header	All	Through Hole	15 µin	0.38 µm	2.54 µm	100 µin	Push-Pull	Black	64	105 ░C	-55 °C	2	UL94 V-0	Shrouded - 4 Wall	Mounting Flange	0.549 in	13.94 mm	2.54 mm	0.1 in	Tin-Lead	1 A	0.1 in	2.54 mm	16.23 mm	0.639 in	Gold or Gold-Palladium	6.1 mm	0.24 in
TE Connectivity Raychem Cable Protection 102153-9	Male Pin	Board to Cable/Wire	0.11 in	2.79 mm	Square	Solder	Header	All	Through Hole	15 µin	0.38 µm	2.54 µm	100 µin	Push-Pull	Black	40	105 ░C	-55 °C	2	UL94 V-0	Shrouded - 4 Wall	Mounting Flange	0.549 in	13.94 mm	2.54 mm	0.1 in	Tin-Lead	1 A	0.1 in	2.54 mm	16.23 mm	0.639 in	Gold or Gold-Palladium	6.1 mm	0.24 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.85
		30	$ 7.51
		90	$ 7.31
		450	$ 6.82
		960	$ 6.41
Newark	Each	250	$ 6.11
		500	$ 5.47

Description

General part information

102153 Series

Connector Header Through Hole 64 position 0.100" (2.54mm)
