25098 BK199

Active

ALPHA WIRE

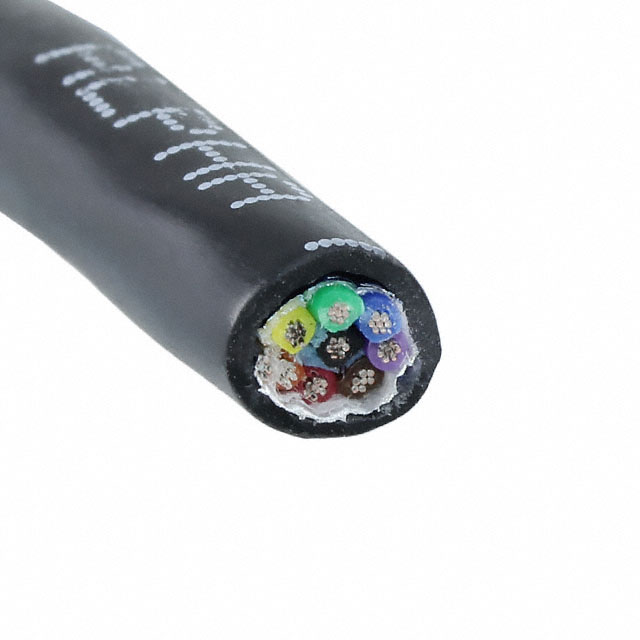

CABLE 8COND 24AWG BLK SHLD FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8COND 24AWG BLK SHLD FEET

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable Black 24 AWG Foil Enter Number of Feet in Order Quantity

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	25098 BK199	25098 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Rip Cord, Biological Compatibility, Drain Wire	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.219 in	0.219 in
Jacket (Insulation) Diameter [diameter]	5.56 mm	5.56 mm
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Black
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	30.5 m
Length	-	100 ft
Number of Conductors	8	8
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Spool Size	1000 ft	1000 ft
Spool Size	304.8 m	304.8 m
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

MULTICONDUCTOR CABLE, XTRA-GUARD® 2, SHIELDED, 8 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Ratings	Shield Coverage	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Shield Material	Conductor Material	Length [x]	Length [x]	Jacket Color	Features	Conductor Insulation	Cable Type	Voltage	Spool Size	Spool Size	Length
ALPHA WIRE 25098 BK005	0.219 in	5.56 mm	8	32 AWG	7	24 AWG	ISO 10993, UL Style 20668	100 %	Polyurethane (PU)	-30 ░C	90 °C	Foil	Aluminum	Copper, Tinned	30.5 m	100 ft	Black	Biological Compatibility, Drain Wire, Rip Cord	Poly-Vinyl Chloride (PVC)	Multi-Conductor	300 V
ALPHA WIRE 25098 BK199	0.219 in	5.56 mm	8	32 AWG	7	24 AWG	ISO 10993, UL Style 20668	100 %	Polyurethane (PU)	-30 ░C	90 °C	Foil	Aluminum	Copper, Tinned			Black	Biological Compatibility, Drain Wire, Rip Cord	Poly-Vinyl Chloride (PVC)	Multi-Conductor	300 V	1000 ft	304.8 m	Enter Number of Feet in Order Quantity
