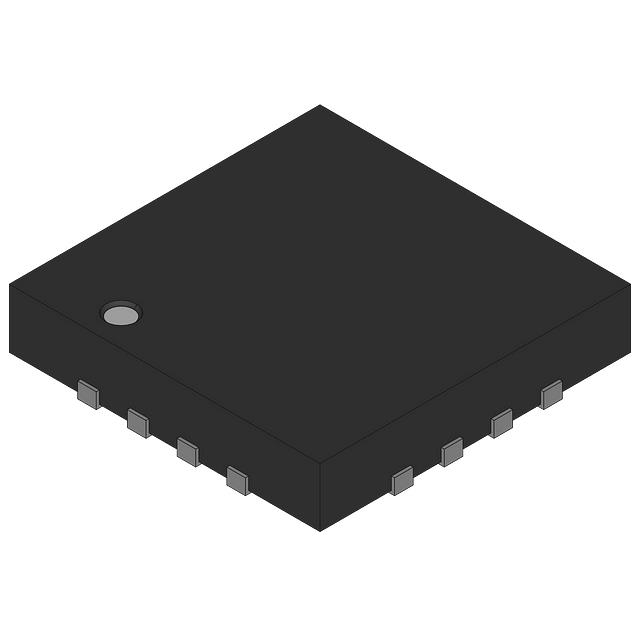

LM2675LD-3.3
ActiveNational Semiconductor
IC REG BUCK 3.3V 1A 16WSON
Deep-Dive with AI
Search across all available documentation for this part.
LM2675LD-3.3
ActiveNational Semiconductor
IC REG BUCK 3.3V 1A 16WSON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LM2675LD-3.3 |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 260 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-WSON (5x5) |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Min) [Min] | 6.5 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 213 | $ 1.41 | |
| 258 | $ 1.16 | |||
Description
General part information
LM2675 Series
Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 1A 16-WFDFN Exposed Pad
Documents
Technical documentation and resources
No documents available
