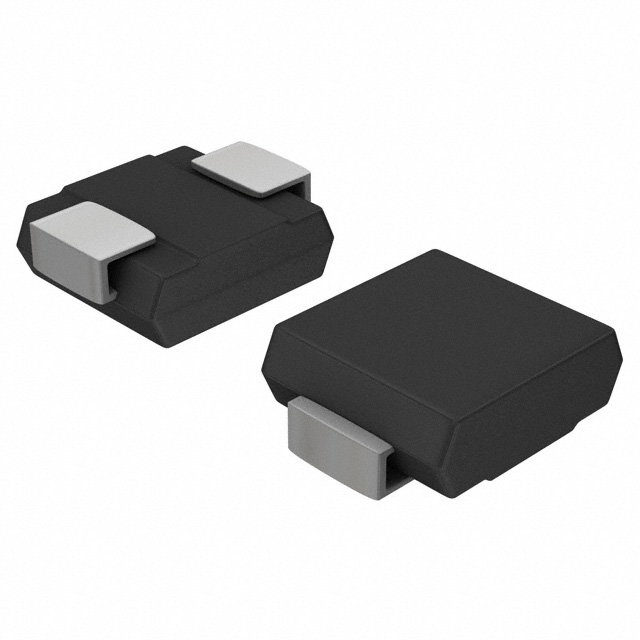

1.5SMC36A

Active

Bourns Inc.

TVS DIODE 30.8VWM 49.9VC DO214AB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1.5SMC36A

Active

Bourns Inc.

TVS DIODE 30.8VWM 49.9VC DO214AB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.58
		10	$ 0.49
		100	$ 0.34
		500	$ 0.27
		1000	$ 0.22
	Digi-Reel®	1	$ 0.58
		10	$ 0.49
		100	$ 0.34
		500	$ 0.27
		1000	$ 0.22
	Tape & Reel (TR)	3000	$ 0.21
		3000	$ 0.20
		6000	$ 0.19
		6000	$ 0.20
		9000	$ 0.17
		9000	$ 0.19
		30000	$ 0.17
		30000	$ 0.18

Description

General part information

1.5SMC Series

49.9V Clamp 30.5A Ipp Tvs Diode Surface Mount DO-214AB (SMC)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.5SMC36A	1.5SMC Series

Applications	General Purpose	General Purpose
Bidirectional Channels	-	1
Current - Peak Pulse (10/1000µs)	30.5 A	2 - 134.5 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	SMC, DO-214AB	SMC, DO-214AB
Power - Peak Pulse	1.5 kW	1.5 kW
Power - Peak Pulse	1500 W	1500 W
Power Line Protection	False	False
Supplier Device Package	DO-214AB (SMC)	DO-214AB (SMC)
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min) [Min]	34.2 V	6.45 - 522.5 V
Voltage - Clamping (Max) @ Ipp	-	18.2 - 760 V
Voltage - Clamping (Max) @ Ipp [Max]	49.9 V	10.5 - 725 V
Voltage - Reverse Standoff (Typ)	30.8 V	5.8 - 495 V

1.5SMC Series

TVS DIODE 30.8VWM 49.9VC DO214AB

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Package / Case	Unidirectional Channels [custom]	Power - Peak Pulse	Power - Peak Pulse	Mounting Type	Voltage - Reverse Standoff (Typ)	Type	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp
Bourns Inc. 1.5SMC36A	-55 °C	150 °C	34.2 V	30.5 A	DO-214AB, SMC	1	1.5 kW	1500 W	Surface Mount	30.8 V	Zener	General Purpose	49.9 V	DO-214AB (SMC)
Bourns Inc. 1.5SMC400CA	-55 °C	150 °C	380 V	2.8 A	DO-214AB, SMC		1.5 kW	1500 W	Surface Mount	342 V	Zener	General Purpose	548 V	DO-214AB (SMC)	1
Bourns Inc. 1.5SMC13CA	-55 °C	150 °C	12.4 V	83.5 A	DO-214AB, SMC		1.5 kW	1500 W	Surface Mount	11.1 V	Zener	General Purpose		DO-214AB (SMC)	1	18.2 V
Bourns Inc. 1.5SMC530A	-55 °C	150 °C	503.5 V	2.1 A	DO-214AB, SMC	1	1.5 kW	1500 W	Surface Mount		Zener	General Purpose	725 V	DO-214AB (SMC)
Bourns Inc. 1.5SMC24A	-55 °C	150 °C	22.8 V	45.8 A	DO-214AB, SMC	1	1.5 kW	1500 W	Surface Mount	20.5 V	Zener	General Purpose	33.2 V	DO-214AB (SMC)
Bourns Inc. 1.5SMC33A	-55 °C	150 °C	31.4 V	33.3 A	DO-214AB, SMC	1	1.5 kW	1500 W	Surface Mount	28.2 V	Zener	General Purpose	45.7 V	DO-214AB (SMC)
Bourns Inc. 1.5SMC20A	-55 °C	150 °C	19 V	54.9 A	DO-214AB, SMC	1	1.5 kW	1500 W	Surface Mount	17.1 V	Zener	General Purpose	27.7 V	DO-214AB (SMC)
Bourns Inc. 1.5SMC91CA	-55 °C	150 °C	86.5 V	12.2 A	DO-214AB, SMC		1.5 kW	1500 W	Surface Mount	77.8 V	Zener	General Purpose		DO-214AB (SMC)	1	125 V
Bourns Inc. 1.5SMC8.2CA	-55 °C	150 °C	7.79 V	125.6 A	DO-214AB, SMC		1.5 kW	1500 W	Surface Mount	7.02 V	Zener	General Purpose	12.1 V	DO-214AB (SMC)	1
Bourns Inc. 1.5SMC56A	-55 °C	150 °C	53.2 V	19.7 A	DO-214AB, SMC	1	1.5 kW	1500 W	Surface Mount	47.8 V	Zener	General Purpose		DO-214AB (SMC)		77 V
