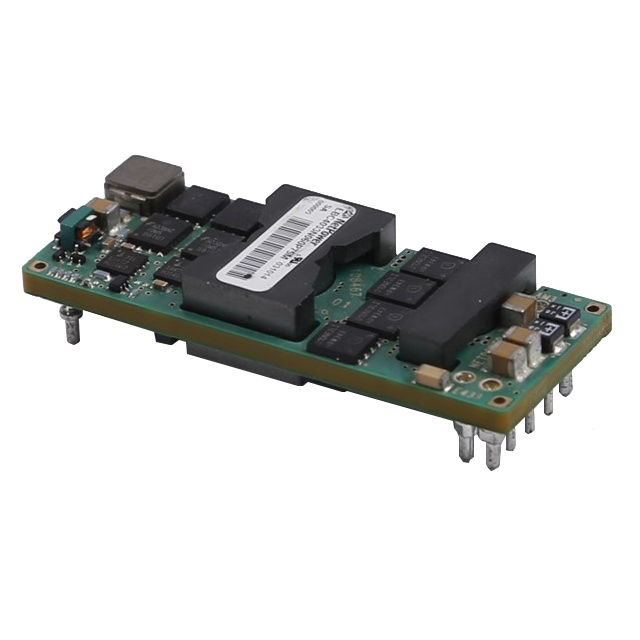

EBC4050N042N75

Active

NetPower

DC DC CONVERTER 5V 210W

Search across all available documentation for this part.

Active

NetPower

DC DC CONVERTER 5V 210W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 5V 210W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Input (Min) [Min]	Number of Outputs	Mounting Type	Efficiency	Voltage - Input (Max) [Max]	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Applications	Voltage - Isolation	Power (Watts)	Supplier Device Package	Voltage - Output 1	Control Features
NetPower EBC4050N042N75	85 °C	-40 °C	Isolated Module	36 V	1	Through Hole	94 %	75 V	Eighth Brick	10.7 mm	0.9 "	2.3 in	22.8 mm	0.42 in	58.4 mm	42 A	ITE (Commercial)	2250 VDC	210 W	Eighth Brick	5 V	Active Low, Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 77.80

General part information

Isolated Module DC DC Converter 1 Output 5V 42A 36V - 75V Input
