BU-5120-A-4-0

Active

Mueller Electric Co

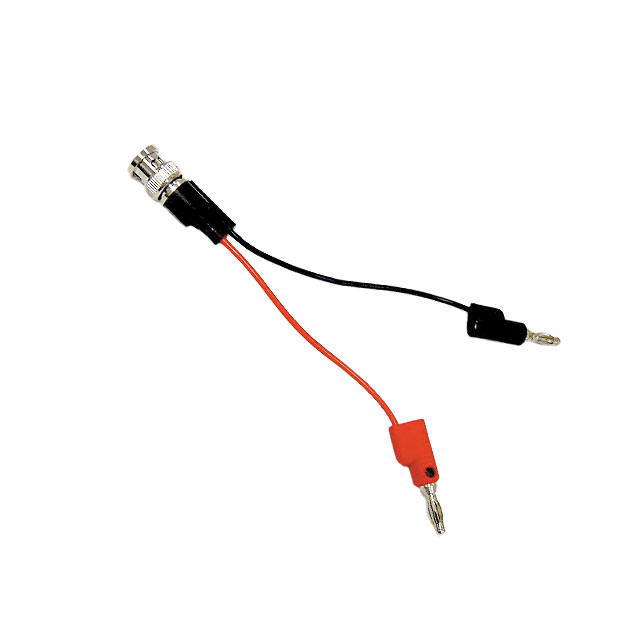

TEST LEAD, BNC PLUG TO 4MM BANANA PLUGS X 2, 300 VRMS, 5 A, 101 MM

Search across all available documentation for this part.

Active

Mueller Electric Co

TEST LEAD, BNC PLUG TO 4MM BANANA PLUGS X 2, 300 VRMS, 5 A, 101 MM

Technical Specifications

Parameters and characteristics for this part

Specification	BU-5120-A-4-0

1st Connector	BNC, Male Plug
2nd Connector	Banana Plug, Single, Stackable (2)
Cable Length [x]	4 in
Cable Length [x]	101.6 mm
Configuration	BNC to Banana
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Temperature Range	105 °C
Temperature Range	221 °F
Voltage - Rated	300 VAC
Wire Gauge	20 AWG

Part	Material - Insulation	2nd Connector	Voltage - Rated	1st Connector	Wire Gauge	Configuration	Temperature Range	Temperature Range	Current Rating (Amps)	Cable Length [x]	Cable Length [x]
Mueller Electric Co BU-5120-A-4-0	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable (2)	300 VAC	BNC Male Plug	20 AWG	BNC to Banana	105 °C	221 °F	5 A	4 in	101.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.0" (101.60mm) BNC, Male Plug To Banana Plug, Single, Stackable (2) Test Lead 300VAC
