Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RW-200-E-3/8-0-SP | RW-200 Series |
|---|---|---|
| Color | Black | Black |
| Features | Abrasion Resistant, Fluid Resistant, Chemical Resistant, Solvent Resistant, Acid Resistant, Impact Resistant, Fuel Resistant | Abrasion Resistant, Fluid Resistant, Chemical Resistant, Solvent Resistant, Acid Resistant, Impact Resistant, Fuel Resistant |
| Inner Diameter - Recovered | - | 2.36 - 3.18 mm |
| Inner Diameter - Recovered | - | 0.093 in |
| Inner Diameter - Recovered [diameter] | 4.75 mm | 1.57 - 19.05 mm |
| Inner Diameter - Recovered [diameter] | 0.187 in | 0.062 - 0.75 in |
| Inner Diameter - Supplied [diameter] | 0.375 in | 0.125 - 1.5 in |
| Inner Diameter - Supplied [diameter] | 9.53 mm | 3.18 - 38.1 mm |
| Length | Enter Number of Meters in Order Quantity | Enter Number of Feet in Order Quantity, Enter Number of Meters in Order Quantity |
| Length | 164 ft | 5 - 164 ft |
| Length | 50 m | 1.52 - 50 m |
| Length | - | 1 - 5 m |
| Length | - | 3.28 - 16.4 ft |
| Material | Fluoroelastomer (FKM), Irradiated | Fluoroelastomer (FKM), Irradiated |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 - -40 °C |
| Recovered Wall Thickness | 0.97 mm | 0.76 - 1.7 mm |
| Recovered Wall Thickness | 0.038 in | 0.031 - 0.067 " |
| Recovered Wall Thickness | - | 1.13 mm |
| Recovered Wall Thickness | - | 0.044 " |
| Recovered Wall Thickness | - | 0.03 " |
| Shrink Temperature | 100 °C | 100 °C |
| Shrinkage Ratio | 2 to 1 | 2 to 1 |
| Spool Size | 984.3 ft | 50 - 984.3 ft |
| Spool Size | 300 m | 15.2 - 300 m |
| Type | Tubing, Flexible | Tubing, Flexible |
RW-200 Series
HEATSHRINK FLUOR BLK FEET
| Part | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Shrinkage Ratio | Operating Temperature [Max] | Operating Temperature [Min] | Shrink Temperature | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Spool Size | Spool Size | Material | Type | Recovered Wall Thickness | Recovered Wall Thickness | Length | Color | Features | Length | Length | Inner Diameter - Recovered | Inner Diameter - Recovered | Length [x] | Length [x] | Recovered Wall Thickness [custom] | Recovered Wall Thickness [custom] | Recovered Wall Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine RW-200-1-0-SP | 0.5 in | 12.7 mm | 2 to 1 | 200 °C | -40 °C | 100 °C | 1 in | 25.4 mm | 15.2 m | 50 ft | Fluoroelastomer (FKM), Irradiated | Tubing, Flexible | 1.24 mm | 0.049 " | Enter Number of Feet in Order Quantity | Black | Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant | |||||||||
TE Connectivity Aerospace, Defense and Marine RW-200-3/8-0-SP | 0.187 in | 4.75 mm | 2 to 1 | 200 °C | -40 °C | 100 °C | 0.375 in | 9.53 mm | Fluoroelastomer (FKM), Irradiated | Tubing, Flexible | 0.89 mm | 0.035 in | Black | Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant | 1.52 m, 7.6 m, 15.2 m | 5 ', 25 ft, 50 ft | ||||||||||
TE Connectivity Aerospace, Defense and Marine RW-200-1/2-0-SP | 0.25 in | 6.35 mm | 2 to 1 | 200 °C | -40 °C | 100 °C | 0.5 in | 12.7 mm | 61 m | 200 ' | Fluoroelastomer (FKM), Irradiated | Tubing, Flexible | 0.89 mm | 0.035 in | Enter Number of Feet in Order Quantity | Black | Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant | 1.52 m, 7.6 m, 15.2 m | 5 ', 25 ft, 50 ft | |||||||
TE Connectivity Aerospace, Defense and Marine RW-200-1/4-0-SP | 0.125 in | 2 to 1 | 200 °C | -40 °C | 100 °C | 0.25 in | 6.35 mm | Fluoroelastomer (FKM), Irradiated | Tubing, Flexible | 0.89 mm | 0.035 in | Black | Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant | 7.6 m, 15.2 m | 25 ft, 50 ft | 3.18 mm | ||||||||||
TE Connectivity Aerospace, Defense and Marine RW-200-E-3/8-0-SP | 0.187 in | 4.75 mm | 2 to 1 | 200 °C | -55 °C | 100 °C | 0.375 in | 9.53 mm | 300 m | 984.3 ft | Fluoroelastomer (FKM), Irradiated | Tubing, Flexible | 0.97 mm | 0.038 in | Enter Number of Meters in Order Quantity | Black | Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant | 50 m | 164 ft | |||||||
TE Connectivity Aerospace, Defense and Marine RW-200-E-3/16-0-SP | 2 to 1 | 200 °C | -55 °C | 100 °C | 0.187 in | 4.75 mm | 300 m | 984.3 ft | Fluoroelastomer (FKM), Irradiated | Tubing, Flexible | 0.84 mm | 0.033 in | Enter Number of Meters in Order Quantity | Black | Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant | 25 m, 50 m | 82 ft, 164 ft | 2.36 mm | 0.093 in | 1 m, 5 m | 3.28 ft, 16.4 ft | |||||
TE Connectivity Aerospace, Defense and Marine RW-200-E-1/2-0-SP | 0.25 in | 6.35 mm | 2 to 1 | 200 °C | -55 °C | 100 °C | 0.5 in | 12.7 mm | 180 m | 590.6 ft | Fluoroelastomer (FKM), Irradiated | Tubing, Flexible | Enter Number of Meters in Order Quantity | Black | Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant | 1 m, 5 m | 3.28 ft, 16.4 ft | 1.13 mm | 0.044 " | |||||||
TE Connectivity Aerospace, Defense and Marine RW-200-1-1/2-0-SP | 0.75 " | 19.05 mm | 2 to 1 | 200 °C | -40 °C | 100 °C | 1.5 in | 38.1 mm | Fluoroelastomer (FKM), Irradiated | Tubing, Flexible | 1.4 mm | 0.055 in | Enter Number of Feet in Order Quantity | Black | Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant | 1.52 m, 15.2 m | 5 ', 50 ft | |||||||||
TE Connectivity Aerospace, Defense and Marine RW-200-1/8-0-SP | 0.062 in | 1.57 mm | 2 to 1 | 200 °C | -40 °C | 100 °C | 0.125 " | 3.18 mm | Fluoroelastomer (FKM), Irradiated | Tubing, Flexible | 0.76 mm | Black | Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant | 1.52 m, 7.6 m, 15.2 m | 5 ', 25 ft, 50 ft | 0.03 " | ||||||||||
TE Connectivity Aerospace, Defense and Marine RW-200-E-3/4-0-SP | 0.375 in | 9.53 mm | 2 to 1 | 200 °C | -55 °C | 100 °C | 150 m | 492.1 ' | Fluoroelastomer (FKM), Irradiated | Tubing, Flexible | 1.4 mm | 0.055 in | Enter Number of Meters in Order Quantity | Black | Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant | 1 m, 5 m | 3.28 ft, 16.4 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 98.22 | |
| 2 | $ 90.33 | |||
| 3 | $ 86.01 | |||
| 5 | $ 80.87 | |||
| 7 | $ 77.65 | |||
| 10 | $ 74.37 | |||
| 25 | $ 66.86 | |||
| Spool | 300 | $ 51.30 | ||
Description
General part information
RW-200 Series

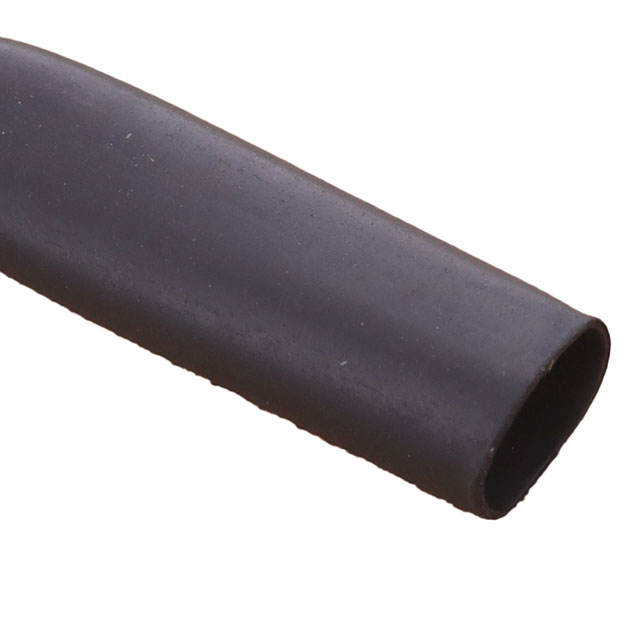

Heat Shrink Tubing, Flexible 0.375" (9.53mm) 2 to 1 Black Enter Number of Meters in Order Quantity
