RW-200-E-1/2-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

HTSHRNK FLUOR HW 1/2" BLK METER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet RW-200(-E) Spec

RW-200-E-1/2-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

HTSHRNK FLUOR HW 1/2" BLK METER

Deep-Dive with AI

DocumentsDatasheet RW-200(-E) Spec

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 86.97
		1	$ 380.00
		5	$ 81.53
		5	$ 366.43
		10	$ 361.00
		10	$ 76.10
		25	$ 72.29
		25	$ 352.85
		50	$ 70.66
		100	$ 69.03
	Digi-Spool®, Continuous Spool	1	$ 100.43
		5	$ 94.15
		10	$ 87.88
		25	$ 83.48
		50	$ 81.60
		100	$ 79.72

Description

General part information

RW-200 Series

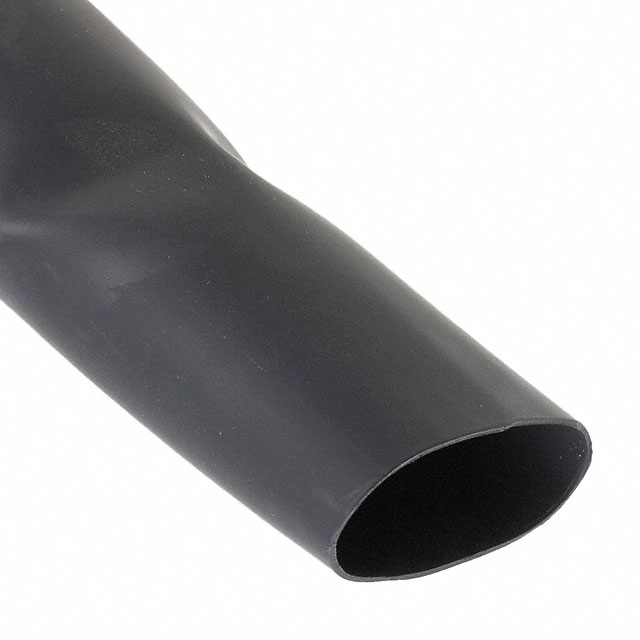

Heat Shrink Tubing, Flexible 0.500" (12.70mm) 2 to 1 Black Enter Number of Meters in Order Quantity

Documents

Technical documentation and resources

Datasheet

RW-200(-E) Spec

Datasheet

Specification	RW-200-E-1/2-0-SP	RW-200 Series

Color	Black	Black
Features	Abrasion Resistant, Fluid Resistant, Chemical Resistant, Solvent Resistant, Acid Resistant, Impact Resistant, Fuel Resistant	Abrasion Resistant, Fluid Resistant, Chemical Resistant, Solvent Resistant, Acid Resistant, Impact Resistant, Fuel Resistant
Inner Diameter - Recovered	-	2.36 - 3.18 mm
Inner Diameter - Recovered	-	0.093 in
Inner Diameter - Recovered [diameter]	0.25 in	0.062 - 0.75 in
Inner Diameter - Recovered [diameter]	6.35 mm	1.57 - 19.05 mm
Inner Diameter - Supplied [diameter]	12.7 mm	3.18 - 38.1 mm
Inner Diameter - Supplied [diameter]	0.5 in	0.125 - 1.5 in
Length	Enter Number of Meters in Order Quantity	Enter Number of Feet in Order Quantity, Enter Number of Meters in Order Quantity
Length	-	1.52 - 50 m
Length	-	5 - 164 ft
Length [x]	16.4 ft, 3.28 ft	3.28 - 16.4 ft
Length [x]	5 m, 1 m	1 - 5 m
Material	Fluoroelastomer (FKM), Irradiated	Fluoroelastomer (FKM), Irradiated
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 - -40 °C
Recovered Wall Thickness	-	0.76 - 1.7 mm
Recovered Wall Thickness	-	0.031 - 0.067 "
Recovered Wall Thickness	-	0.03 "
Recovered Wall Thickness [custom]	1.13 mm	1.13 mm
Recovered Wall Thickness [custom]	0.044 "	0.044 "
Shrink Temperature	100 °C	100 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	590.6 ft	50 - 984.3 ft
Spool Size	180 m	15.2 - 300 m
Type	Tubing, Flexible	Tubing, Flexible

Part

Inner Diameter - Recovered [diameter]

Shrinkage Ratio

Operating Temperature [Max]

Operating Temperature [Min]

Shrink Temperature

Inner Diameter - Supplied [diameter]

Spool Size

Material

Type

Recovered Wall Thickness

Length

Color

Features

Length

Inner Diameter - Recovered

Length [x]

Recovered Wall Thickness [custom]

Recovered Wall Thickness

TE Connectivity Aerospace, Defense and Marine

RW-200-1-0-SP

0.5 in

12.7 mm

2 to 1

200 °C

-40 °C

100 °C

1 in

25.4 mm

15.2 m

50 ft

Fluoroelastomer (FKM), Irradiated

Tubing, Flexible

1.24 mm

0.049 "

Enter Number of Feet in Order Quantity

Black

Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant

TE Connectivity Aerospace, Defense and Marine

RW-200-3/8-0-SP

0.187 in

4.75 mm

2 to 1

200 °C

-40 °C

100 °C

0.375 in

9.53 mm

Fluoroelastomer (FKM), Irradiated

Tubing, Flexible

0.89 mm

0.035 in

Black

Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant

1.52 m, 7.6 m, 15.2 m

5 ', 25 ft, 50 ft

TE Connectivity Aerospace, Defense and Marine

RW-200-1/2-0-SP

0.25 in

6.35 mm

2 to 1

200 °C

-40 °C

100 °C

0.5 in

12.7 mm

61 m

200 '

Fluoroelastomer (FKM), Irradiated

Tubing, Flexible

0.89 mm

0.035 in

Enter Number of Feet in Order Quantity

Black

Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant

1.52 m, 7.6 m, 15.2 m

5 ', 25 ft, 50 ft

TE Connectivity Aerospace, Defense and Marine

RW-200-1/4-0-SP

0.125 in

2 to 1

200 °C

-40 °C

100 °C

0.25 in

6.35 mm

Fluoroelastomer (FKM), Irradiated

Tubing, Flexible

0.89 mm

0.035 in

Black

Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant

7.6 m, 15.2 m

25 ft, 50 ft

3.18 mm

TE Connectivity Aerospace, Defense and Marine

RW-200-E-3/8-0-SP

0.187 in

4.75 mm

2 to 1

200 °C

-55 °C

100 °C

0.375 in

9.53 mm

300 m

984.3 ft

Fluoroelastomer (FKM), Irradiated

Tubing, Flexible

0.97 mm

0.038 in

Enter Number of Meters in Order Quantity

Black

Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant

50 m

164 ft

TE Connectivity Aerospace, Defense and Marine

RW-200-E-3/16-0-SP

2 to 1

200 °C

-55 °C

100 °C

0.187 in

4.75 mm

300 m

984.3 ft

Fluoroelastomer (FKM), Irradiated

Tubing, Flexible

0.84 mm

0.033 in

Enter Number of Meters in Order Quantity

Black

Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant

25 m, 50 m

82 ft, 164 ft

2.36 mm

0.093 in

1 m, 5 m

3.28 ft, 16.4 ft

TE Connectivity Aerospace, Defense and Marine

RW-200-E-1/2-0-SP

0.25 in

6.35 mm

2 to 1

200 °C

-55 °C

100 °C

0.5 in

12.7 mm

180 m

590.6 ft

Fluoroelastomer (FKM), Irradiated

Tubing, Flexible

Enter Number of Meters in Order Quantity

Black

Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant

1 m, 5 m

3.28 ft, 16.4 ft

1.13 mm

0.044 "

TE Connectivity Aerospace, Defense and Marine

RW-200-1-1/2-0-SP

0.75 "

19.05 mm

2 to 1

200 °C

-40 °C

100 °C

1.5 in

38.1 mm

Fluoroelastomer (FKM), Irradiated

Tubing, Flexible

1.4 mm

0.055 in

Enter Number of Feet in Order Quantity

Black

Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant

1.52 m, 15.2 m

5 ', 50 ft

TE Connectivity Aerospace, Defense and Marine

RW-200-1/8-0-SP

0.062 in

1.57 mm

2 to 1

200 °C

-40 °C

100 °C

0.125 "

3.18 mm

Fluoroelastomer (FKM), Irradiated

Tubing, Flexible

0.76 mm

Black

Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant

1.52 m, 7.6 m, 15.2 m

5 ', 25 ft, 50 ft

0.03 "

TE Connectivity Aerospace, Defense and Marine

RW-200-E-3/4-0-SP

0.375 in

9.53 mm

2 to 1

200 °C

-55 °C

100 °C

150 m

492.1 '

Fluoroelastomer (FKM), Irradiated

Tubing, Flexible

1.4 mm

0.055 in

Enter Number of Meters in Order Quantity

Black

Abrasion Resistant, Acid Resistant, Chemical Resistant, Fluid Resistant, Fuel Resistant, Impact Resistant, Solvent Resistant

1 m, 5 m

3.28 ft, 16.4 ft
