3132-0-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.

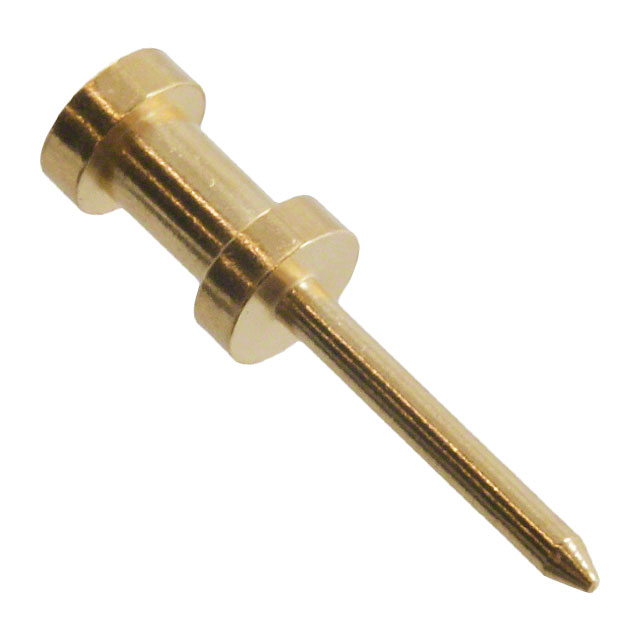

CONN PC PIN CIRC 0.030DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3132-0-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.030DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3132-0-00-15-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 2.36 mm |
| Flange Diameter [diameter] | 0.093 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 6.1 mm |
| Length - Above Flange [x] | 0.24 in |
| Length - Below Flange [x] | 0.125 in |
| Length - Below Flange [x] | 3.18 mm |
| Length - Overall [x] | 0.395 in |
| Length - Overall [x] | 10.03 mm |
| Mounting Type | Free Hanging (In-Line) |
| Pin Size - Above Flange [diameter] | 0.76 mm |
| Pin Size - Above Flange [diameter] | 0.03 in |
| Pin Size - Below Flange [diameter] | 0.06 in |
| Pin Size - Below Flange [diameter] | 1.52 mm |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.43 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.32 | |||
| 50 | $ 0.29 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.20 | |||
| 2500 | $ 0.18 | |||
Description
General part information
3132-0 Series
PC Pin Terminal Connector Free Hanging (In-Line) Gold 0.030" (0.76mm) Dia
Documents
Technical documentation and resources
No documents available
